Step1: Product

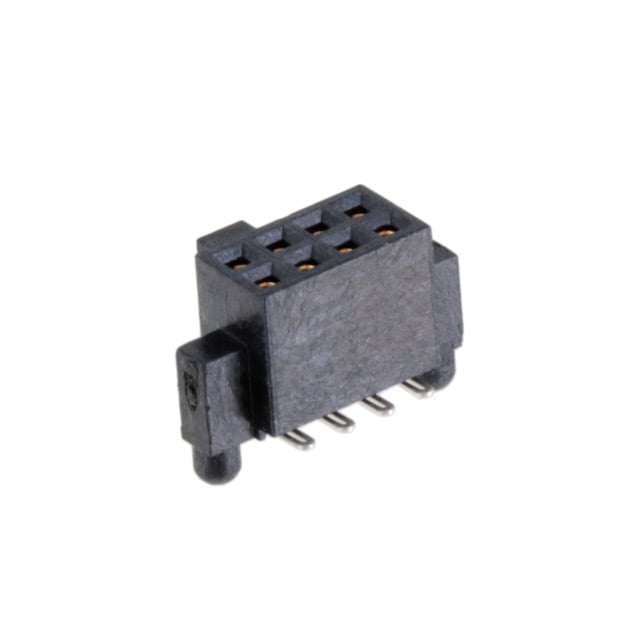

Samtec Inc. SFM-104-02-L-D-A
Image shown is a representation only
Manufacturer
Manufacturer No
SFM-104-02-L-D-A
Quantity
60
Availability
In Stock
Packaging
Tube
Description
CONN RCPT 8POS 0.05 GOLD SMD
Detailed Description
8 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet
Mfr
Samtec Inc.
Style
Board to Board or Cable
Series
Tiger Eye™ SFM
Features
Board Guide
Packaging
Tube
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
250VAC
Contact Material
Beryllium Copper
Insulation Color
Black
Insulation Height
0.185" (4.70mm)
Base Product Number
SFM-104
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
8
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Current Rating (Amps)
3.2A per Contact
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Style | Board to Board or Cable |
| Series | Tiger Eye™ SFM |
| Features | Board Guide |
| Packaging | Tube |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 250VAC |
| Contact Material | Beryllium Copper |
| Insulation Color | Black |
| Insulation Height | 0.185" (4.70mm) |
| Base Product Number | SFM-104 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 3.2A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
