Step1: Product

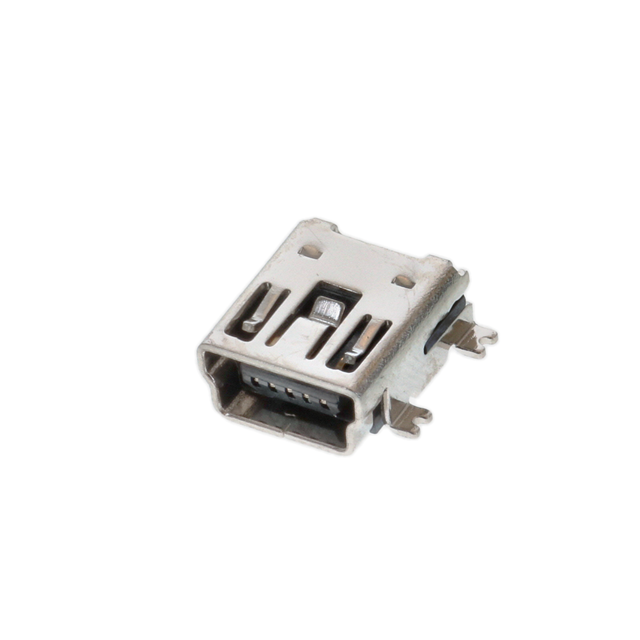

Samtec Inc. MUSB-05-S-B-SM-A-K-TR
Image shown is a representation only
Manufacturer
Manufacturer No
MUSB-05-S-B-SM-A-K-TR
Quantity
148
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN RCPT USB2.0 MINI B SMD R/A
Detailed Description
USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
DataSheet
Gender
Receptacle
Series
MUSB
Features
Board Guide, Pick and Place, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Unshielded
Part Status
Active
Termination
Solder
Manufacturer
Samtec Inc.
Mating Cycles
1500
Mounting Type
Surface Mount, Right Angle
Connector Type
USB - mini B
Contact Finish
Gold
Specifications
USB 2.0
Number of Ports
1
Voltage - Rated
30V
Insulation Color
Black
Mounting Feature
Horizontal
Number of Contacts
5
Base Product Number
MUSB-05
Operating Temperature
-50°C ~ 85°C
Shell/Shielding Material
Copper Alloy
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | MUSB |
| Features | Board Guide, Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Unshielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Samtec Inc. |
| Mating Cycles | 1500 |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | USB - mini B |
| Contact Finish | Gold |
| Specifications | USB 2.0 |
| Number of Ports | 1 |
| Voltage - Rated | 30V |
| Insulation Color | Black |
| Mounting Feature | Horizontal |
| Number of Contacts | 5 |
| Base Product Number | MUSB-05 |
| Operating Temperature | -50°C ~ 85°C |
| Shell/Shielding Material | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
