Step1: Product

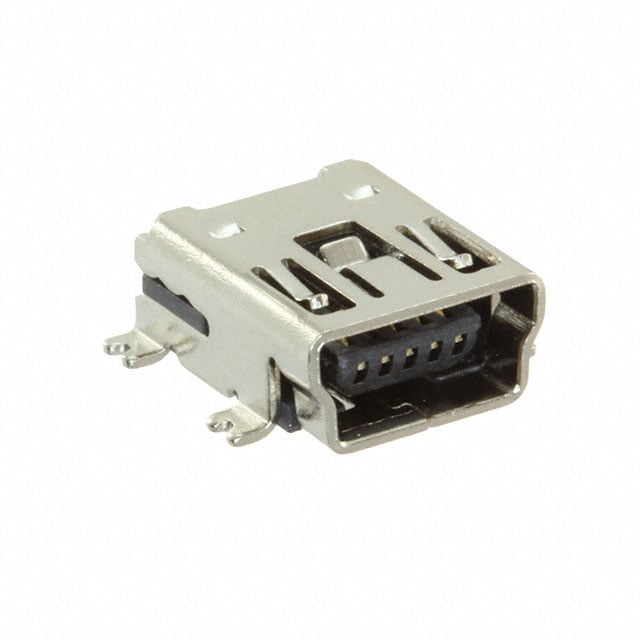

Samtec Inc. MUSB-05-F-B-SM-A
Image shown is a representation only
Manufacturer
Manufacturer No
MUSB-05-F-B-SM-A
Quantity
7
Availability
In Stock
Packaging
Tray
Description
CONN RCPT USB2.0 MINI B SMD R/A
Detailed Description
USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Datasheet
Gender
Receptacle
Series
MUSB
Features
Board Guide, Solder Retention
Packaging
Tray
Shielding
Unshielded
Termination
Solder
Manufacturer
Samtec Inc.
Mating Cycles
1500
Mounting Type
Surface Mount, Right Angle
Connector Type
USB - mini B
Contact Finish
Gold
Specifications
USB 2.0
Number of Ports
1
Voltage - Rated
30V
Insulation Color
Black
Mounting Feature
Horizontal
Number of Contacts
5
Base Product Number
MUSB-05
Operating Temperature
-50°C ~ 85°C
Shell/Shielding Material
Copper Alloy
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | MUSB |
| Features | Board Guide, Solder Retention |
| Packaging | Tray |
| Shielding | Unshielded |
| Termination | Solder |
| Manufacturer | Samtec Inc. |
| Mating Cycles | 1500 |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | USB - mini B |
| Contact Finish | Gold |
| Specifications | USB 2.0 |
| Number of Ports | 1 |
| Voltage - Rated | 30V |
| Insulation Color | Black |
| Mounting Feature | Horizontal |
| Number of Contacts | 5 |
| Base Product Number | MUSB-05 |
| Operating Temperature | -50°C ~ 85°C |
| Shell/Shielding Material | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
