Samtec Inc. HTSW-104-07-F-S

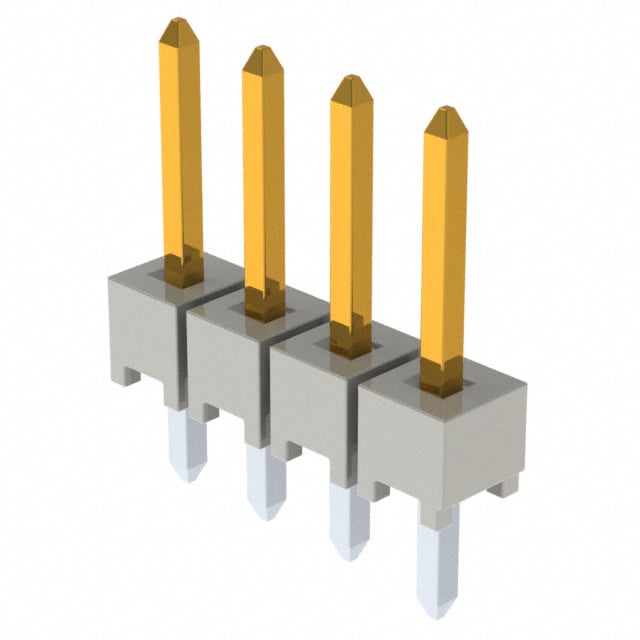

Image shown is a representation only
Manufacturer
Manufacturer No
HTSW-104-07-F-S
Quantity
140
Availability
In Stock
Packaging
Bag
Description
CONN HEADER VERT 4POS 2.54MM
Detailed Description
Connector Header Through Hole 4 position 0.100" (2.54mm)
DataSheet
Mfr
Samtec Inc.
Style
Board to Board or Cable
Series
HTSW
Packaging
Bag
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Insulation Color
Natural
Insulation Height
0.100" (2.54mm)
Base Product Number
HTSW-104
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
4
Contact Finish - Post
Tin
Contact Length - Post
0.100" (2.54mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-55°C ~ 125°C
Overall Contact Length
0.430" (10.92mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.230" (5.84mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
3.00µin (0.076µm)
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Style | Board to Board or Cable |
| Series | HTSW |
| Packaging | Bag |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Natural |
| Insulation Height | 0.100" (2.54mm) |
| Base Product Number | HTSW-104 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 4 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.100" (2.54mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -55°C ~ 125°C |
| Overall Contact Length | 0.430" (10.92mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.230" (5.84mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
