Step1: Product

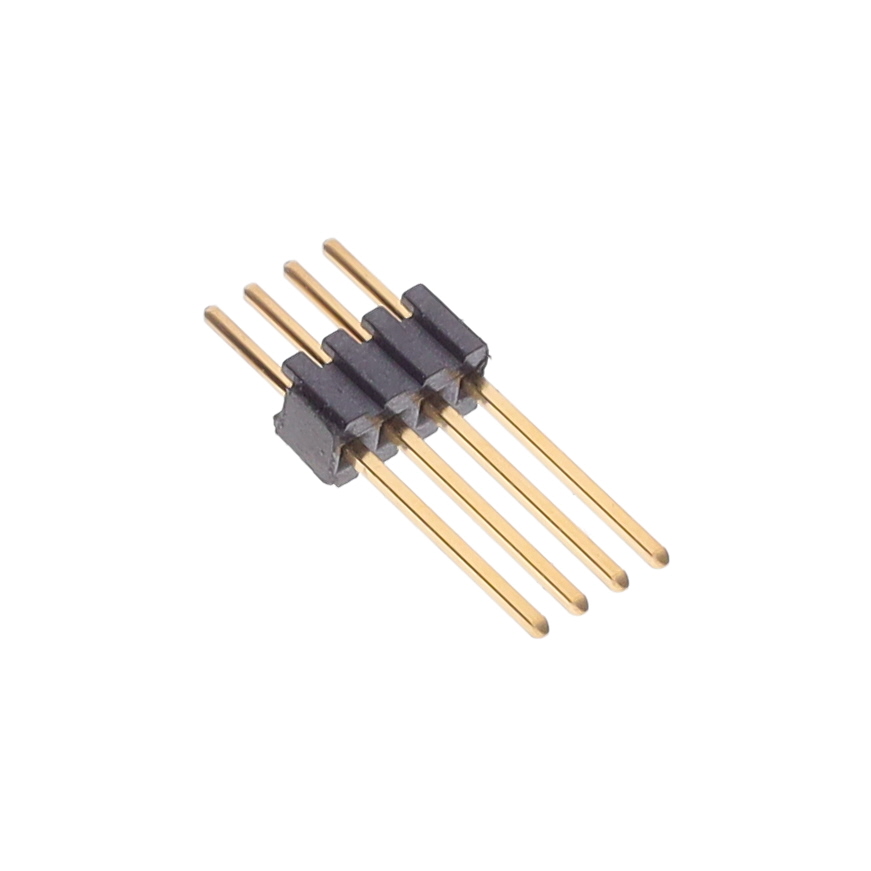

Samtec Inc. HTMS-104-53-G-S
Image shown is a representation only
Manufacturer
Manufacturer No
HTMS-104-53-G-S
Quantity
68
Availability
In Stock
Packaging
Bulk
Description
CONN HDR .050" 10POS
Detailed Description
Connector Header Through Hole 4 position 0.050" (1.27mm)
DataSheet
Mfr
Samtec Inc.
Style
Board to Board
Series
HTMS
Packaging
Bulk
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.050" (1.27mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.100" (2.54mm)
Base Product Number
HTMS-104
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
4
Contact Finish - Post
Gold
Contact Length - Post
0.120" (3.05mm)
Current Rating (Amps)
5A per Contact
Operating Temperature
-55°C ~ 125°C
Overall Contact Length
0.505" (12.83mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.285" (7.24mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
3.00µin (0.076µm)
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Style | Board to Board |
| Series | HTMS |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.100" (2.54mm) |
| Base Product Number | HTMS-104 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 4 |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.120" (3.05mm) |
| Current Rating (Amps) | 5A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Overall Contact Length | 0.505" (12.83mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.285" (7.24mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
