Step1: Product

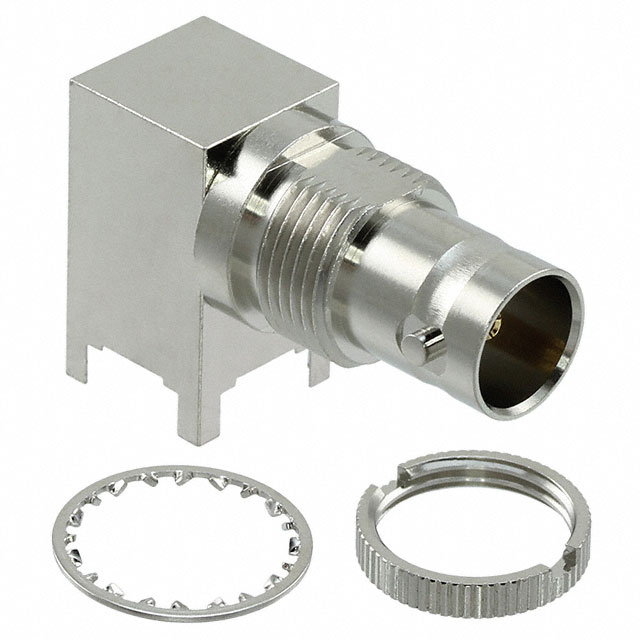

Samtec Inc. BNC7T-J-P-GN-RA-BH1
Image shown is a representation only
Manufacturer
Manufacturer No
BNC7T-J-P-GN-RA-BH1
Quantity
5
Availability
In Stock
Packaging
Tray
Description
CONN BNC JACK R/A 75 OHM PCB
Detailed Description
BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
Datasheet
Mfr
Samtec Inc.
Series
BNC
Includes
3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance
75 Ohms
Packaging
Tray
Body Finish
Nickel
Body Material
Brass
Housing Color
Silver
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Voltage Rating
500 V
Connector Style
BNC
Frequency - Max
12 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Shield Termination
Solder
Base Product Number
BNC7T-J
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 125°C
Center Contact Plating
Gold
Center Contact Material
Copper Alloy
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Series | BNC |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 75 Ohms |
| Packaging | Tray |
| Body Finish | Nickel |
| Body Material | Brass |
| Housing Color | Silver |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Voltage Rating | 500 V |
| Connector Style | BNC |
| Frequency - Max | 12 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shield Termination | Solder |
| Base Product Number | BNC7T-J |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 125°C |
| Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy |
