Step1: Product

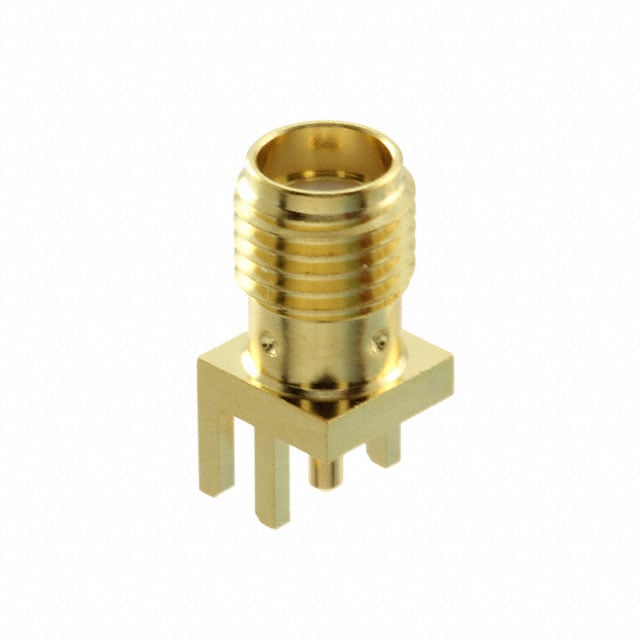

Samtec Inc. SMA-J-P-H-ST-EM1

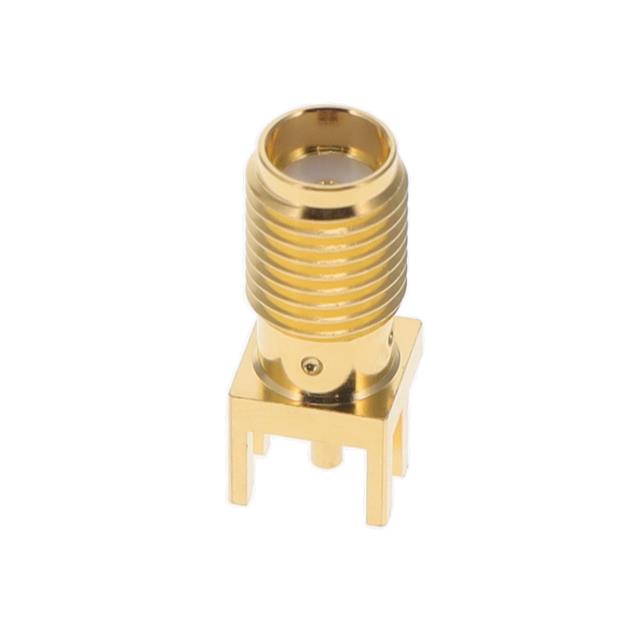

Image shown is a representation only
Manufacturer
Manufacturer No
SMA-J-P-H-ST-EM1
Quantity
590
Availability
In Stock
Packaging
Tray
Description
CONN SMA JACK STR 50OHM EDGE MNT
Detailed Description
SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
DataSheet
Mfr
Samtec Inc.
Series
SMA
Impedance
50 Ohms
Packaging
Tray
Body Finish
Gold
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mounting Type
Board Edge, End Launch
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
335 V
Connector Style
SMA
Frequency - Max
20 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
SMA-J
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 125°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Series | SMA |
| Impedance | 50 Ohms |
| Packaging | Tray |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mounting Type | Board Edge, End Launch |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 335 V |
| Connector Style | SMA |
| Frequency - Max | 20 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | SMA-J |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 125°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
