Step1: Product
Same Sky (Formerly CUI Devices) SP-35501-OM

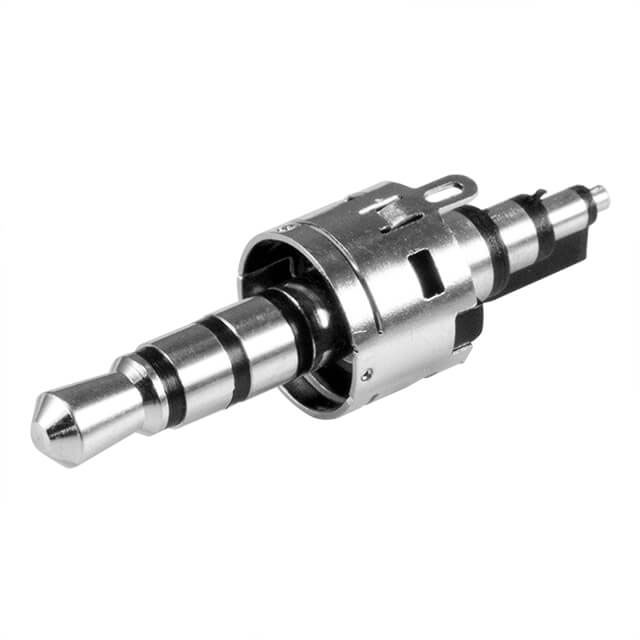

Image shown is a representation only
Manufacturer
Manufacturer No
SP-35501-OM
Packaging
Bag
Description
AUDIO JACK, 3.5 MM, STRAIGHT, 5
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug 5 Conductor (TRRRS) Connector Solder
DataSheet
Mfr
Same Sky (Formerly CUI Devices)
Gender
Male
Series
SP
Packaging
Bag
Shielding
Unshielded
Body Color
Silver
Part Status
Active
Termination
Solder
Signal Lines
5 Conductor (TRRRS)
Body Material
Brass
Mounting Type
Free Hanging (In-Line)
Connector Type
Phone Plug
Actual Diameter
0.126" (3.20mm)
Voltage - Rated
12VDC
Contact Material
Brass
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
0.472" (12.00mm)
Current Rating (Amps)
1 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Nickel
Number of Positions/Contacts
5 Conductors, 5 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Gender | Male |
| Series | SP |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | Silver |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | 5 Conductor (TRRRS) |
| Body Material | Brass |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Phone Plug |
| Actual Diameter | 0.126" (3.20mm) |
| Voltage - Rated | 12VDC |
| Contact Material | Brass |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.472" (12.00mm) |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Nickel |
| Number of Positions/Contacts | 5 Conductors, 5 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
