Step1: Product

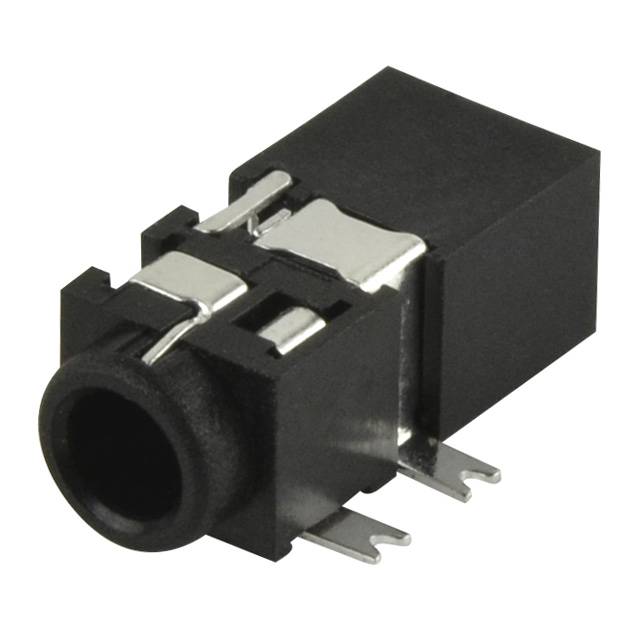

Same Sky (Formerly CUI Devices) SJ2-2563C-SMT-TR
Image shown is a representation only
Manufacturer
Manufacturer No
SJ2-2563C-SMT-TR
Packaging
Tape & Reel (TR)
Description
AUDIO JACK, 2.5 MM, RT, 3 CONDUC
Detailed Description
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Datasheet
Mfr
Same Sky (Formerly CUI Devices)
Gender
Female
Series
SJ2
Features
Board Guide
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Body Color
Black
Termination
Solder
Signal Lines
Stereo (3 Conductor, TRS)
Mounting Type
Surface Mount, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.102" (2.60mm)
Voltage - Rated
12VDC
Contact Material
Brass; Copper Alloy
Housing Material
Polyamide (PA10T), Nylon 10T
Internal Switch(s)
Single Switch
Base Product Number
SJ2-25
Mating Length/Depth
0.433" (11.00mm)
Current Rating (Amps)
1 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Silver
Number of Positions/Contacts
3 Conductors, 4 Contacts
Industry Recognized Mating Diameter
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Gender | Female |
| Series | SJ2 |
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Body Color | Black |
| Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.102" (2.60mm) |
| Voltage - Rated | 12VDC |
| Contact Material | Brass; Copper Alloy |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Internal Switch(s) | Single Switch |
| Base Product Number | SJ2-25 |
| Mating Length/Depth | 0.433" (11.00mm) |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 3 Conductors, 4 Contacts |
| Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
