Step1: Product

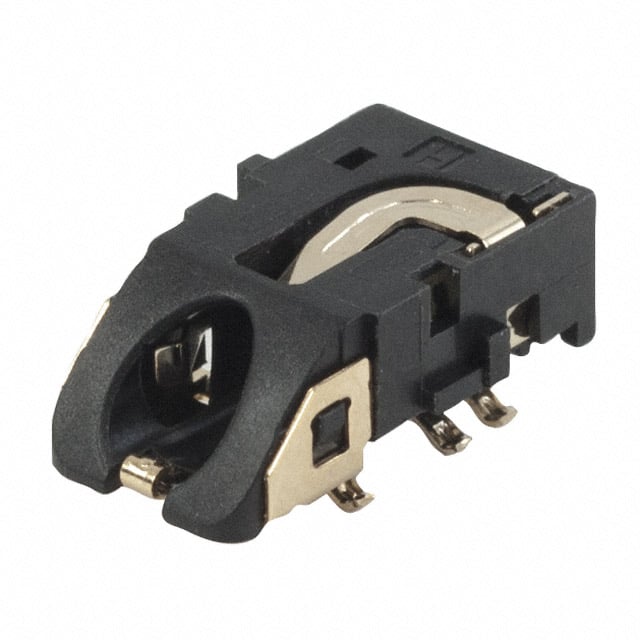

Same Sky (Formerly CUI Devices) SJ-435105
Image shown is a representation only
Manufacturer
Manufacturer No
SJ-435105
Packaging
Tray
Description
CONN JACK 4COND 3.5MM SMD R/A
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
DataSheet
Mfr
Same Sky (Formerly CUI Devices)
Gender
Female
Series
SJ
Packaging
Tray
Shielding
Unshielded
Body Color
Black
Part Status
Obsolete
Termination
Solder
Signal Lines
Stereo (4 Conductor, TRRS)
Mounting Type
Surface Mount, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Voltage - Rated
12V
Contact Material
Copper Alloy
Housing Material
Polyamide (PA6T), Nylon 6T
Internal Switch(s)
Single Switch
Base Product Number
SJ-43
Mating Length/Depth
0.551" (14.00mm)
Current Rating (Amps)
1 A
Operating Temperature
-35°C ~ 85°C
Contact Material - Plating
Gold
Number of Positions/Contacts
4 Conductors, 5 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Gender | Female |
| Series | SJ |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Obsolete |
| Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Voltage - Rated | 12V |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Internal Switch(s) | Single Switch |
| Base Product Number | SJ-43 |
| Mating Length/Depth | 0.551" (14.00mm) |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -35°C ~ 85°C |
| Contact Material - Plating | Gold |
| Number of Positions/Contacts | 4 Conductors, 5 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
