Step1: Product

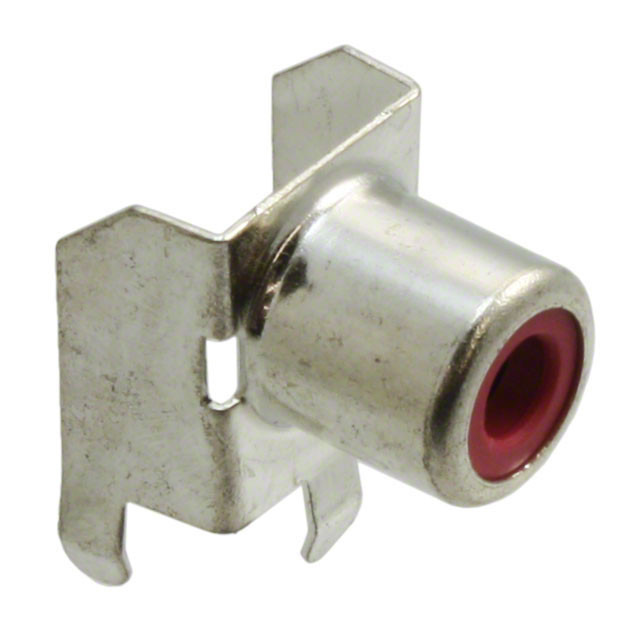

Same Sky (Formerly CUI Devices) RCJ-012
Image shown is a representation only
Manufacturer
Manufacturer No
RCJ-012
Quantity
95
Availability
In Stock
Packaging
Tray
Description
CONN RCA JACK MONO 3.2MM R/A
Detailed Description
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder
DataSheet
Mfr
Same Sky (Formerly CUI Devices)
Gender
Female
Series
RCJ
Features
Board Lock
Packaging
Tray
Shielding
Unshielded
Body Color
Silver
Part Status
Active
Termination
Solder
Signal Lines
Mono
Body Material
Steel
Mounting Type
Through Hole, Right Angle
Connector Type
Phono (RCA) Jack
Actual Diameter
0.142" (3.60mm ID), 0.327" (8.30mm OD)
Contact Material
Brass
Insulation Color
Red
Internal Switch(s)
Does Not Contain Switch
Operating Temperature
-20°C ~ 85°C
Contact Material - Plating
Tin
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
3.20mm ID, 9.00mm OD (RCA)
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Gender | Female |
| Series | RCJ |
| Features | Board Lock |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Silver |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | Mono |
| Body Material | Steel |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phono (RCA) Jack |
| Actual Diameter | 0.142" (3.60mm ID), 0.327" (8.30mm OD) |
| Contact Material | Brass |
| Insulation Color | Red |
| Internal Switch(s) | Does Not Contain Switch |
| Operating Temperature | -20°C ~ 85°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
