Step1: Product

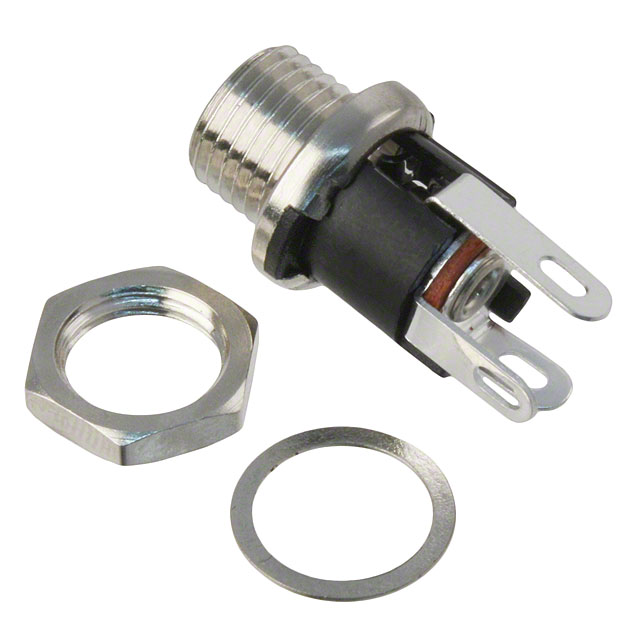

Same Sky (Formerly CUI Devices) PJ-005A
Image shown is a representation only
Manufacturer
Manufacturer No
PJ-005A
Quantity
10
Availability
In Stock
Packaging
Bag
Description
CONN PWR JACK 2.0X5.5MM SOLDER
Detailed Description
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Panel Mount, Through Hole
DataSheet
Gender
Male
Features
Mounting Hardware, Thread Lock
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Packaging
Bag
Shielding
Unshielded
Body Color
Silver, Black
Part Status
Active
Termination
Solder Eyelet(s)
Manufacturer
Same Sky (Formerly CUI Devices)
Body Material
Brass
Mounting Type
Panel Mount, Through Hole
Connector Type
Jack
Actual Diameter
0.079" (2.00mm ID), 0.224" (5.70mm OD)
Voltage - Rated
24VDC
Contact Material
Brass, Phosphor Bronze
Housing Material
Polybutylene Terephthalate (PBT)
Mounting Feature
Bulkhead - Front Side Nut
Internal Switch(s)
Single Switch, Normally Closed
Base Product Number
PJ-005
Mating Length/Depth
0.354" (9.00mm)
Current Rating (Amps)
5 A
Operating Temperature
-40°C ~ 70°C
Contact Material - Plating
Silver
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.00mm ID (0.079"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Mounting Hardware, Thread Lock |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Body Material | Brass |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Jack |
| Actual Diameter | 0.079" (2.00mm ID), 0.224" (5.70mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Brass, Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Internal Switch(s) | Single Switch, Normally Closed |
| Base Product Number | PJ-005 |
| Mating Length/Depth | 0.354" (9.00mm) |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material - Plating | Silver |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
