Step1: Product

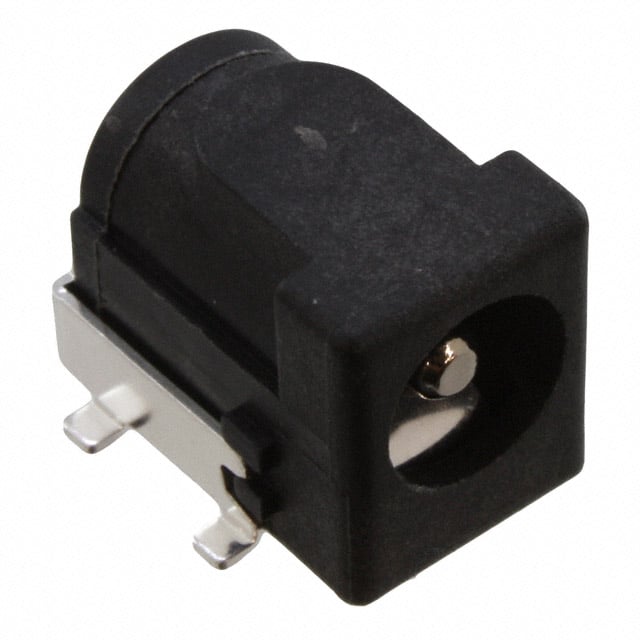

Same Sky (Formerly CUI Devices) PJ-002BH-SMT-TR
Image shown is a representation only
Manufacturer
Manufacturer No
PJ-002BH-SMT-TR
Quantity
256
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN PWR JACK 2.5X5.5MM SOLDER
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Surface Mount, Right Angle
DataSheet
Gender
Male
Features
Board Guide, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Solder
Manufacturer
Same Sky (Formerly CUI Devices)
Mounting Type
Surface Mount, Right Angle
Connector Type
Jack
Actual Diameter
0.098" (2.50mm ID), 0.256" (6.50mm OD)
Voltage - Rated
24VDC
Contact Material
Brass, Copper Alloy
Housing Material
Polyamide (PA6T), Nylon 6T
Internal Switch(s)
Single Switch, Normally Closed
Base Product Number
PJ-002
Mating Length/Depth
0.350" (8.90mm)
Current Rating (Amps)
5 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Silver
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.098" (2.50mm ID), 0.256" (6.50mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Brass, Copper Alloy |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Internal Switch(s) | Single Switch, Normally Closed |
| Base Product Number | PJ-002 |
| Mating Length/Depth | 0.350" (8.90mm) |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Silver |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
