Step1: Product

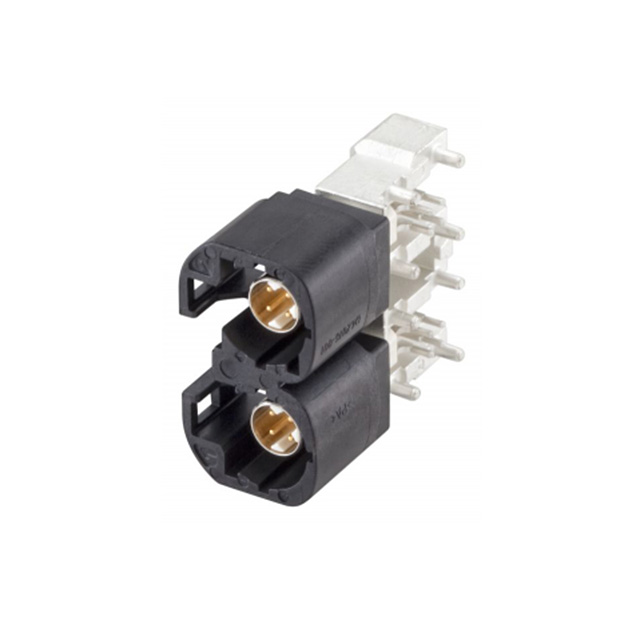

Rosenberger D4S21J-40MA5-A
Image shown is a representation only
Manufacturer
Manufacturer No
D4S21J-40MA5-A
Packaging
Cut Tape (CT)
Description
CONN HSD FAKRA PLUG R/A 100OHM
Detailed Description
HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole, Right Angle Solder
DataSheet
Mfr
Rosenberger
Series
HSD®
Features
Code A
Impedance
100 Ohms
Packaging
Cut Tape (CT)
Body Finish
Nickel
Part Status
Active
Body Material
Brass
Housing Color
Black, Graphite
Mating Cycles
25
Mounting Type
Through Hole, Right Angle
Connector Type
Plug, Male Pin
Fastening Type
Latch Lock
Insertion Loss
0.10dB
Voltage Rating
100 V
Connector Style
HSD®, Fakra, Quadraxial
Frequency - Max
2 GHz
Number of Ports
2
Shield Termination
Solder
Base Product Number
D4S21J
Contact Termination
Solder
Dielectric Material
Liquid Crystal Polymer (LCP)
Operating Temperature
-40°C ~ 105°C
Center Contact Plating
Gold
Center Contact Material
Bronze
| Attribute | Value |
|---|---|
| Mfr | Rosenberger |
| Series | HSD® |
| Features | Code A |
| Impedance | 100 Ohms |
| Packaging | Cut Tape (CT) |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Black, Graphite |
| Mating Cycles | 25 |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug, Male Pin |
| Fastening Type | Latch Lock |
| Insertion Loss | 0.10dB |
| Voltage Rating | 100 V |
| Connector Style | HSD®, Fakra, Quadraxial |
| Frequency - Max | 2 GHz |
| Number of Ports | 2 |
| Shield Termination | Solder |
| Base Product Number | D4S21J |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 105°C |
| Center Contact Plating | Gold |
| Center Contact Material | Bronze |
