Step1: Product

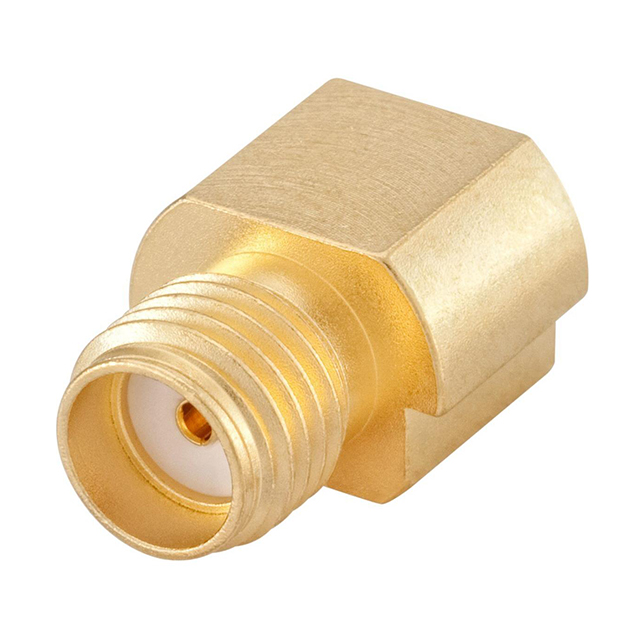

Rosenberger 32K242-40ML5
Image shown is a representation only
Manufacturer
Manufacturer No
32K242-40ML5
Quantity
68
Availability
In Stock
Packaging
Tape & Reel (TR)
Description
SMA RIGHT ANGLE JACK PCB
Detailed Description
SMA Connector Jack, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
DataSheet
Mfr
Rosenberger
Impedance
50 Ohms
Packaging
Tape & Reel (TR)
Body Finish
Gold
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
100
Mounting Type
Board Edge, Cutout; Surface Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
480 V
Connector Style
SMA
Frequency - Max
18 GHz
Number of Ports
1
Shield Termination
Solder
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Rosenberger |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR) |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 100 |
| Mounting Type | Board Edge, Cutout; Surface Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 480 V |
| Connector Style | SMA |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
