Step1: Product

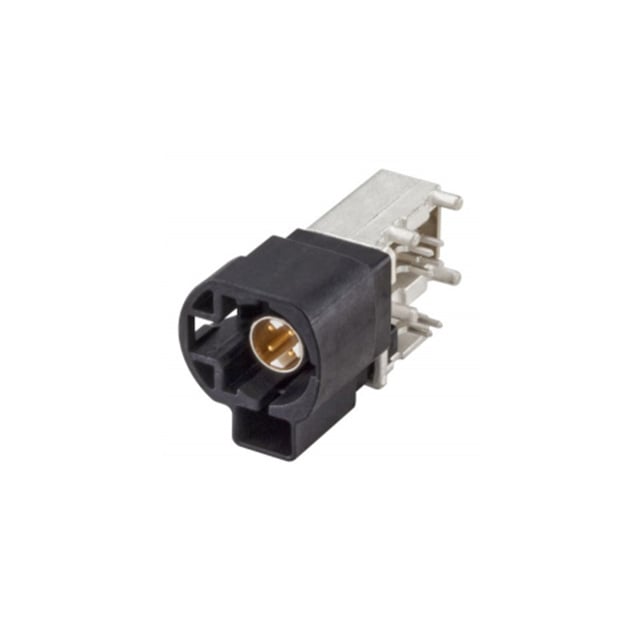

Rosenberger 99S20D-40MA5-A
Image shown is a representation only
Manufacturer
Manufacturer No
99S20D-40MA5-A
Date Code
17+
Quantity
16,265
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HSD FAKRA PLUG R/A 100OHM
Detailed Description
HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole, Right Angle Solder
Datasheet
Mfr
Rosenberger
Features
Code A, Rectangular 2 Pos Connector
Impedance
100 Ohms
Packaging
Tape & Reel (TR); Cut Tape (CT)
Body Finish
Nickel
Body Material
Brass
Housing Color
Black
Mating Cycles
25
Mounting Type
Through Hole, Right Angle
Connector Type
Plug, Male Pin
Fastening Type
Latch Lock
Insertion Loss
0.10dB
Voltage Rating
100 V
Connector Style
HSD®, Fakra, Quadraxial
Frequency - Max
2 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
99S20D
Contact Termination
Solder
Dielectric Material
Liquid Crystal Polymer (LCP)
Operating Temperature
-40°C ~ 105°C
Center Contact Plating
Gold
Center Contact Material
Bronze
| Attribute | Value |
|---|---|
| Mfr | Rosenberger |
| Features | Code A, Rectangular 2 Pos Connector |
| Impedance | 100 Ohms |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Body Finish | Nickel |
| Body Material | Brass |
| Housing Color | Black |
| Mating Cycles | 25 |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug, Male Pin |
| Fastening Type | Latch Lock |
| Insertion Loss | 0.10dB |
| Voltage Rating | 100 V |
| Connector Style | HSD®, Fakra, Quadraxial |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | 99S20D |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 105°C |
| Center Contact Plating | Gold |
| Center Contact Material | Bronze |
