Step1: Product
ROHM Semiconductor IMD10AT108

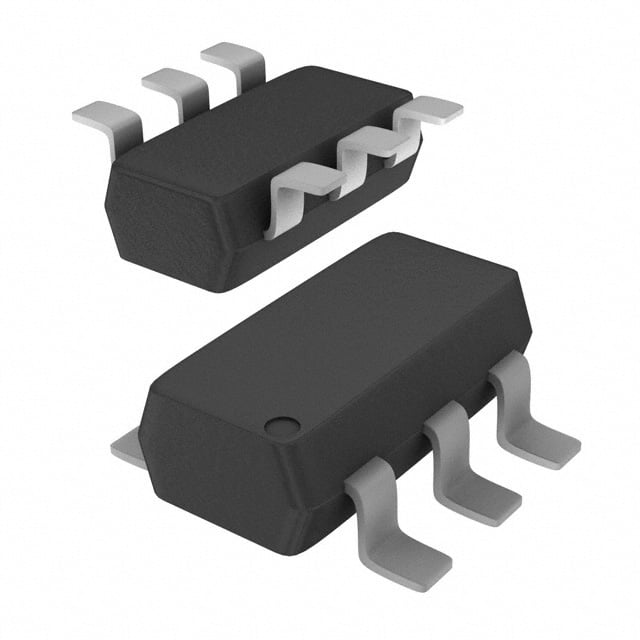

Image shown is a representation only
Manufacturer
Manufacturer No
IMD10AT108
Quantity
3,000
Availability
In Stock
Package
SC-74, SOT-457
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TRANS PREBIAS 1NPN 1PNP 50V SMT6
Detailed Description
Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA, 500mA 250MHz, 200MHz 300mW Surface Mount SMT6
Datasheet
Packaging
Tape & Reel (TR); Cut Tape (CT)
Power - Max
300mW
Manufacturer
Rohm Semiconductor
Mounting Type
Surface Mount
Package / Case
SC-74, SOT-457
Transistor Type
1 NPN, 1 PNP - Pre-Biased (Dual)
Base Product Number
IMD10
Resistor - Base (R1)
10kOhms, 100Ohms
Frequency - Transition
250MHz, 200MHz
Supplier Device Package
SMT6
Resistor - Emitter Base (R2)
10kOhms
Vce Saturation (Max) @ Ib, Ic
300mV @ 1mA, 10mA / 300mV @ 5mA, 100mA
Current - Collector (Ic) (Max)
100mA, 500mA
Current - Collector Cutoff (Max)
500nA
DC Current Gain (hFE) (Min) @ Ic, Vce
100 @ 1mA, 5V / 68 @ 100mA, 5V
Voltage - Collector Emitter Breakdown (Max)
50V
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Power - Max | 300mW |
| Manufacturer | Rohm Semiconductor |
| Mounting Type | Surface Mount |
| Package / Case | SC-74, SOT-457 |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Base Product Number | IMD10 |
| Resistor - Base (R1) | 10kOhms, 100Ohms |
| Frequency - Transition | 250MHz, 200MHz |
| Supplier Device Package | SMT6 |
| Resistor - Emitter Base (R2) | 10kOhms |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 1mA, 10mA / 300mV @ 5mA, 100mA |
| Current - Collector (Ic) (Max) | 100mA, 500mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V / 68 @ 100mA, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
