Step1: Product
Richtek USA Inc. RT9528GQW

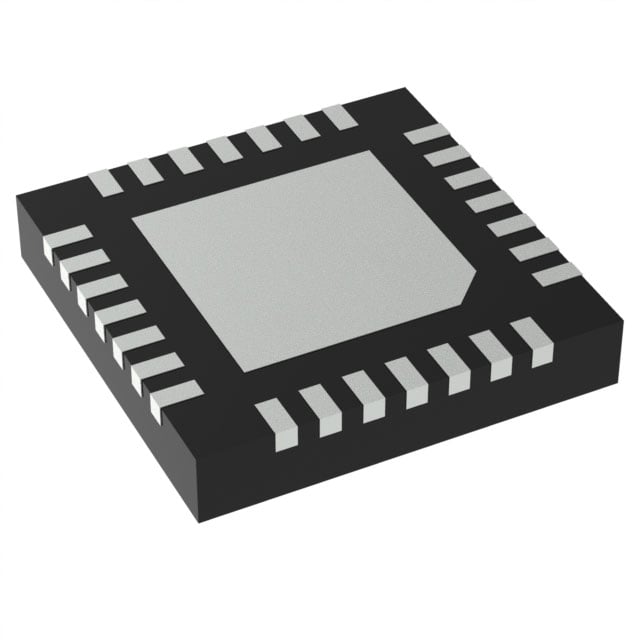

Image shown is a representation only
Manufacturer
Manufacturer No
RT9528GQW
Package
28-WFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
IC LI-ION BATT CHGR WQFN-28
Detailed Description
Charger IC Lithium Ion 28-WQFN (4x4)
DataSheet
Interface
I2C
Packaging
Tape & Reel (TR)
Part Status
Active
Manufacturer
Richtek USA Inc.
Mounting Type
Surface Mount
Package / Case
28-WFQFN Exposed Pad
Number of Cells
1
Fault Protection
Over Temperature, Over Voltage
Battery Chemistry
Lithium Ion
Current - Charging
Constant - Programmable
Base Product Number
RT9528
Battery Pack Voltage
4.2V
Charge Current - Max
1.2A
Operating Temperature
-40°C ~ 85°C (TA)
Programmable Features
Current
Voltage - Supply (Max)
6V
Supplier Device Package
28-WQFN (4x4)
| Attribute | Value |
|---|---|
| Interface | I2C |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Manufacturer | Richtek USA Inc. |
| Mounting Type | Surface Mount |
| Package / Case | 28-WFQFN Exposed Pad |
| Number of Cells | 1 |
| Fault Protection | Over Temperature, Over Voltage |
| Battery Chemistry | Lithium Ion |
| Current - Charging | Constant - Programmable |
| Base Product Number | RT9528 |
| Battery Pack Voltage | 4.2V |
| Charge Current - Max | 1.2A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Programmable Features | Current |
| Voltage - Supply (Max) | 6V |
| Supplier Device Package | 28-WQFN (4x4) |
