Step1: Product
Richtek USA Inc. RT9490WSC

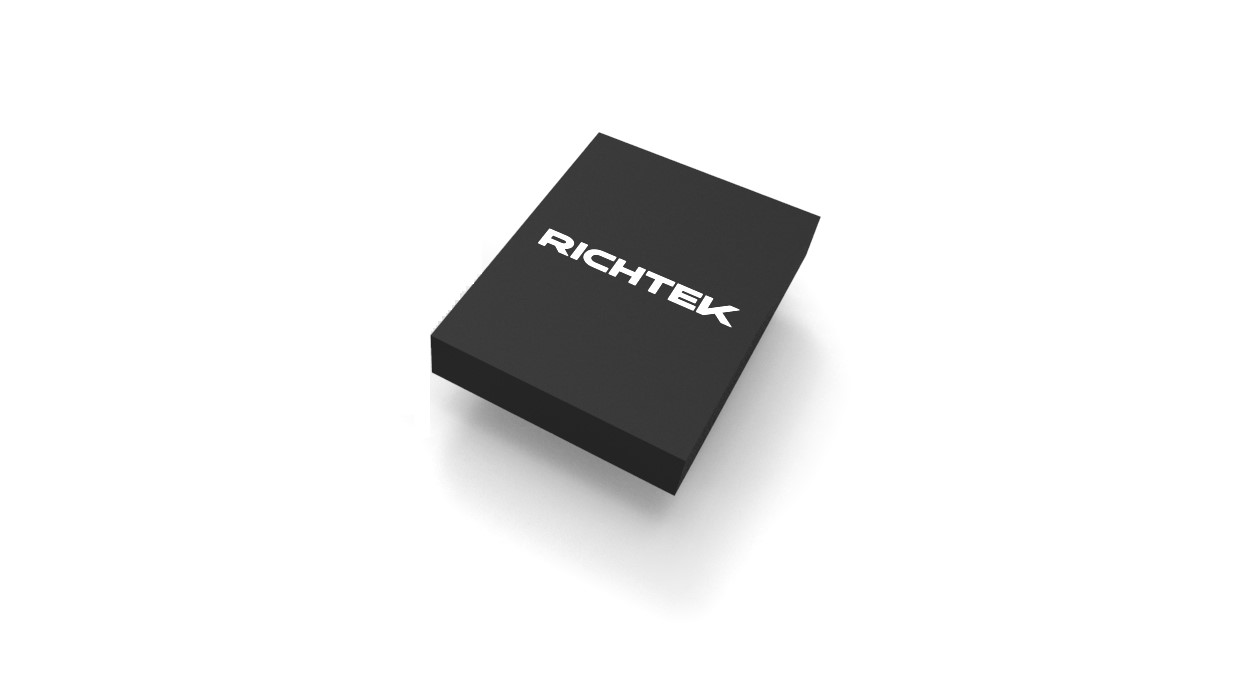

Image shown is a representation only
Manufacturer
Manufacturer No
RT9490WSC
Package
56-UFBGA, WLCSP
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC BATTERY MANAGEMENT
Detailed Description
Charger IC Lithium Ion/Polymer 56-WLCSP (2.93x3.46)
Interface
I2C
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Richtek USA Inc.
Mounting Type
Surface Mount
Package / Case
56-UFBGA, WLCSP
Number of Cells
1 ~ 4
Fault Protection
Over Current, Over Temperature, Over-Under Voltage, Short Circuit
Battery Chemistry
Lithium Ion/Polymer
Current - Charging
Constant - Programmable
Battery Pack Voltage
18.8V (Max)
Charge Current - Max
5A
Operating Temperature
-40°C ~ 85°C (TA)
Programmable Features
Current, Timer, Voltage
Voltage - Supply (Max)
24V
Supplier Device Package
56-WLCSP (2.93x3.46)
| Attribute | Value |
|---|---|
| Interface | I2C |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Richtek USA Inc. |
| Mounting Type | Surface Mount |
| Package / Case | 56-UFBGA, WLCSP |
| Number of Cells | 1 ~ 4 |
| Fault Protection | Over Current, Over Temperature, Over-Under Voltage, Short Circuit |
| Battery Chemistry | Lithium Ion/Polymer |
| Current - Charging | Constant - Programmable |
| Battery Pack Voltage | 18.8V (Max) |
| Charge Current - Max | 5A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Programmable Features | Current, Timer, Voltage |
| Voltage - Supply (Max) | 24V |
| Supplier Device Package | 56-WLCSP (2.93x3.46) |
