Step1: Product
Renesas Electronics Corporation PS9513-AX

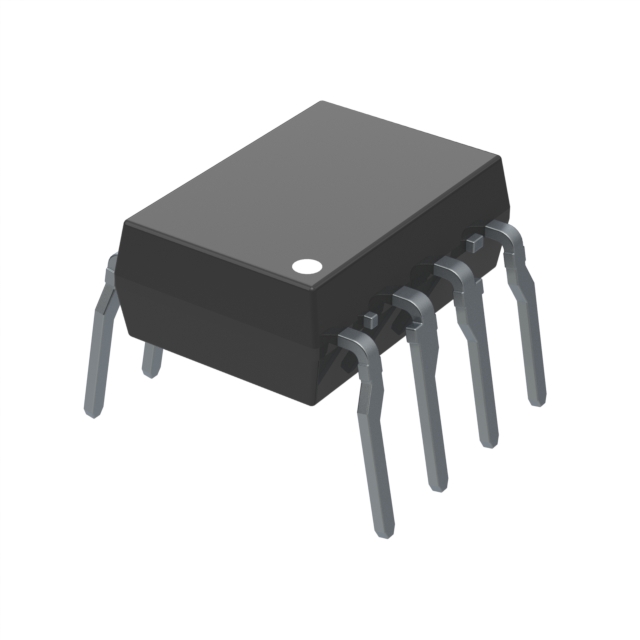

Image shown is a representation only
Manufacturer
Manufacturer No
PS9513-AX
Quantity
16
Availability
In Stock
Package
8-DIP (0.300", 7.62mm)
Packaging
Tube
Description
OPTOISOLTR 5KV OPEN COLL 8-DIP
Detailed Description
Logic Output Optoisolator 1Mbps Open Collector 5000Vrms 1 Channel 15kV/µs CMTI 8-DIP
Datasheet
Data Rate
1Mbps
Packaging
Tube
Input Type
DC
Output Type
Open Collector
Manufacturer
Renesas Electronics Corporation
Mounting Type
Through Hole
Package / Case
8-DIP (0.300", 7.62mm)
Voltage - Supply
4.5V ~ 20V
Number of Channels
1
Base Product Number
PS9513
Voltage - Isolation
5000Vrms
Operating Temperature
-40°C ~ 100°C
Inputs - Side 1/Side 2
1/0
Supplier Device Package
8-DIP
Current - Output / Channel
15 mA
Voltage - Forward (Vf) (Typ)
1.65V
Current - DC Forward (If) (Max)
25mA
Propagation Delay tpLH / tpHL (Max)
750ns, 500ns
Common Mode Transient Immunity (Min)
15kV/µs
| Attribute | Value |
|---|---|
| Data Rate | 1Mbps |
| Packaging | Tube |
| Input Type | DC |
| Output Type | Open Collector |
| Manufacturer | Renesas Electronics Corporation |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Voltage - Supply | 4.5V ~ 20V |
| Number of Channels | 1 |
| Base Product Number | PS9513 |
| Voltage - Isolation | 5000Vrms |
| Operating Temperature | -40°C ~ 100°C |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 8-DIP |
| Current - Output / Channel | 15 mA |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Current - DC Forward (If) (Max) | 25mA |
| Propagation Delay tpLH / tpHL (Max) | 750ns, 500ns |
| Common Mode Transient Immunity (Min) | 15kV/µs |
