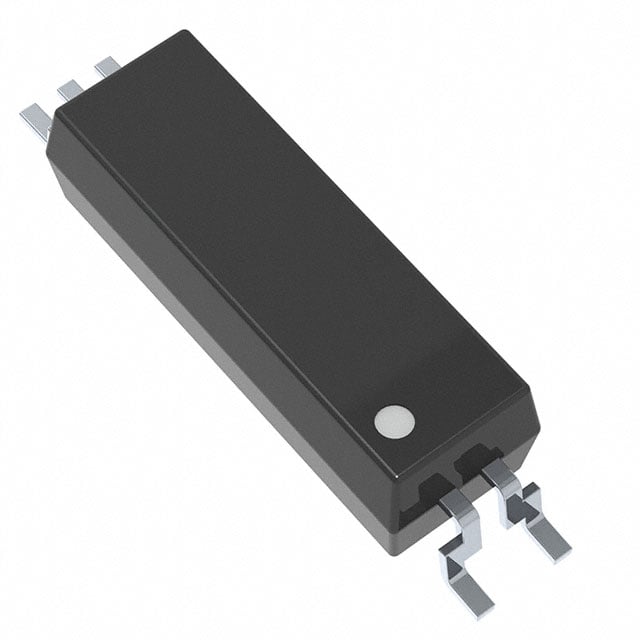

Renesas Electronics Corporation PS9151-V-F3-AX
Image shown is a representation only
Manufacturer
Manufacturer No
PS9151-V-F3-AX
Quantity
80
Availability
In Stock
Package
6-SOIC (0.173", 4.40mm Width), 5 Leads
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
OPTOISOLTR 3.75KV PUSH PULL 5-SO
Detailed Description
Logic Output Optoisolator 15Mbps Push-Pull, Totem Pole 3750Vrms 1 Channel 15kV/µs CMTI 5-SO
DataSheet
Data Rate
15Mbps
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
DC
Output Type
Push-Pull, Totem Pole
Part Status
Active
Manufacturer
Renesas Electronics Corporation
Mounting Type
Surface Mount
Package / Case
6-SOIC (0.173", 4.40mm Width), 5 Leads
Voltage - Supply
4.5V ~ 5.5V
Number of Channels
1
Base Product Number
PS9151
Voltage - Isolation
3750Vrms
Operating Temperature
-40°C ~ 100°C
Inputs - Side 1/Side 2
1/0
Rise / Fall Time (Typ)
4ns, 4ns
Supplier Device Package
5-SO
Current - Output / Channel
2 mA
Voltage - Forward (Vf) (Typ)
1.65V
Current - DC Forward (If) (Max)
20mA
Propagation Delay tpLH / tpHL (Max)
60ns, 60ns
Common Mode Transient Immunity (Min)
15kV/µs
| Attribute | Value |
|---|---|
| Data Rate | 15Mbps |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Part Status | Active |
| Manufacturer | Renesas Electronics Corporation |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Channels | 1 |
| Base Product Number | PS9151 |
| Voltage - Isolation | 3750Vrms |
| Operating Temperature | -40°C ~ 100°C |
| Inputs - Side 1/Side 2 | 1/0 |
| Rise / Fall Time (Typ) | 4ns, 4ns |
| Supplier Device Package | 5-SO |
| Current - Output / Channel | 2 mA |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Current - DC Forward (If) (Max) | 20mA |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Common Mode Transient Immunity (Min) | 15kV/µs |
