Step1: Product
Renesas Electronics Corporation NP50P03YDG-E1-AY

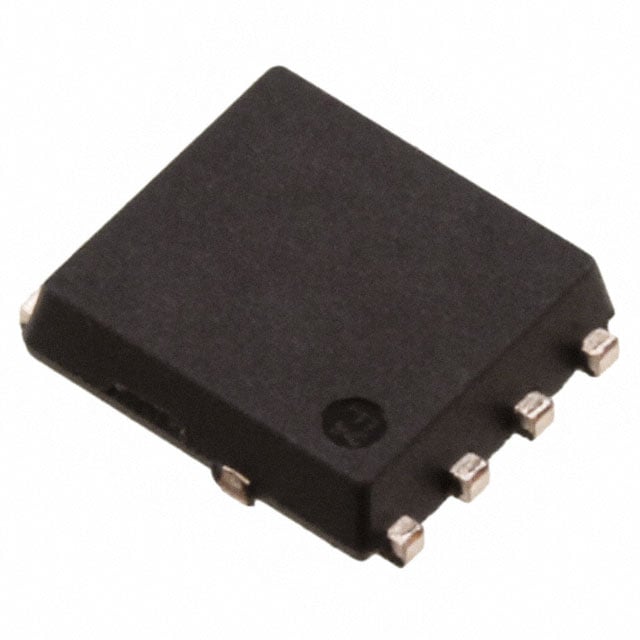

Image shown is a representation only
Manufacturer
Manufacturer No
NP50P03YDG-E1-AY
Package
8-SMD, Flat Lead Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET P-CH 30V 50A 8HSON
Detailed Description
P-Channel 30 V 50A (Tc) 1W (Ta), 102W (Tc) Surface Mount 8-HSON
Datasheet
Mfr
Renesas Electronics Corporation
Grade
Automotive
FET Type
P-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
8-SMD, Flat Lead Exposed Pad
Vgs(th) (Max) @ Id
2.5V @ 250µA
Base Product Number
NP50P03
Operating Temperature
175°C (TJ)
Rds On (Max) @ Id, Vgs
8.4mOhm @ 25A, 10V
Power Dissipation (Max)
1W (Ta), 102W (Tc)
Supplier Device Package
8-HSON
Gate Charge (Qg) (Max) @ Vgs
96 nC @ 10 V
Drain to Source Voltage (Vdss)
30 V
Input Capacitance (Ciss) (Max) @ Vds
3500 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
5V, 10V
Current - Continuous Drain (Id) @ 25°C
50A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Renesas Electronics Corporation |
| Grade | Automotive |
| FET Type | P-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 8-SMD, Flat Lead Exposed Pad |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Base Product Number | NP50P03 |
| Operating Temperature | 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 8.4mOhm @ 25A, 10V |
| Power Dissipation (Max) | 1W (Ta), 102W (Tc) |
| Supplier Device Package | 8-HSON |
| Gate Charge (Qg) (Max) @ Vgs | 96 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 30 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3500 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 50A (Tc) |
