Step1: Product

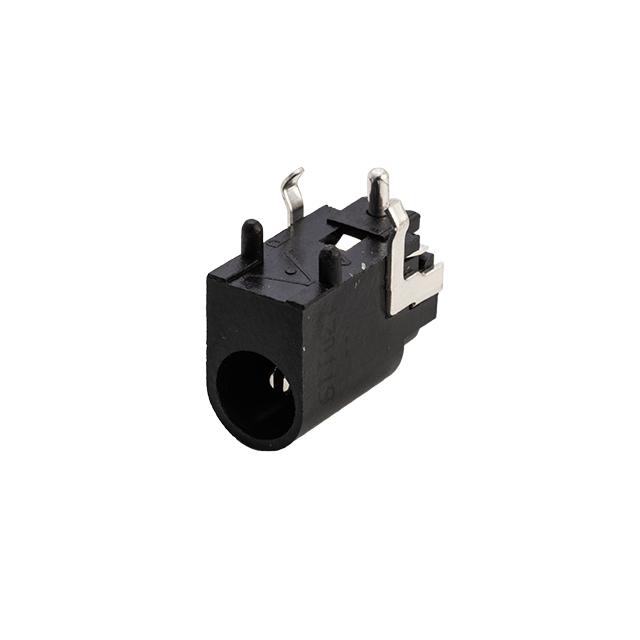

RDI, Inc. RDJ-033-NL
Image shown is a representation only
Manufacturer
Manufacturer No
RDJ-033-NL
Packaging
Bag
Description
1.3 MM DC POWER JACK
Detailed Description
Power Barrel Connector Jack Through Hole, Right Angle
DataSheet
Gender
Male
Features
Board Guide
Packaging
Bag
Shielding
Unshielded
Part Status
Active
Termination
Solder, Solder Eyelet(s)
Manufacturer
RDI, Inc.
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.051" (1.30mm ID), 0.157" (4.00mm OD)
Voltage - Rated
12VDC
Contact Material
Beryllium Copper
Housing Material
Polybutylene Terephthalate (PBT)
Internal Switch(s)
Single Switch, Normally Closed
Mating Length/Depth
0.205" (5.20mm)
Current Rating (Amps)
3 A
Contact Material - Plating
Silver
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Board Guide |
| Packaging | Bag |
| Shielding | Unshielded |
| Part Status | Active |
| Termination | Solder, Solder Eyelet(s) |
| Manufacturer | RDI, Inc. |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.051" (1.30mm ID), 0.157" (4.00mm OD) |
| Voltage - Rated | 12VDC |
| Contact Material | Beryllium Copper |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mating Length/Depth | 0.205" (5.20mm) |
| Current Rating (Amps) | 3 A |
| Contact Material - Plating | Silver |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
