Step1: Product

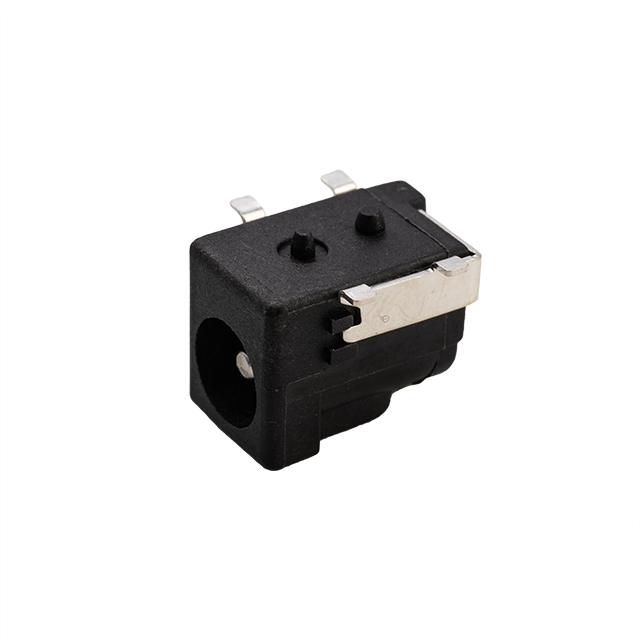

RDI, Inc. RDJ-0210A-CSMT
Image shown is a representation only
Manufacturer
Manufacturer No
RDJ-0210A-CSMT
Packaging
Tape & Reel (TR)
Description
2.0 MM SMT DC POWER JACK
Detailed Description
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount, Through Hole
DataSheet
Gender
Male
Features
Board Guide
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Part Status
Active
Termination
Solder, Solder Eyelet(s)
Manufacturer
RDI, Inc.
Mounting Type
Surface Mount, Through Hole
Connector Type
Jack
Actual Diameter
0.079" (2.00mm ID), 0.256" (6.50mm OD)
Voltage - Rated
24VDC
Contact Material
Copper Alloy
Housing Material
Polyamide (PA6T), Nylon 6T
Internal Switch(s)
Single Switch, Normally Closed
Current Rating (Amps)
3.5 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Nickel
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.00mm ID (0.079"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Part Status | Active |
| Termination | Solder, Solder Eyelet(s) |
| Manufacturer | RDI, Inc. |
| Mounting Type | Surface Mount, Through Hole |
| Connector Type | Jack |
| Actual Diameter | 0.079" (2.00mm ID), 0.256" (6.50mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Internal Switch(s) | Single Switch, Normally Closed |
| Current Rating (Amps) | 3.5 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Nickel |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
