Step1: Product
Radiall USA, Inc. R201508700

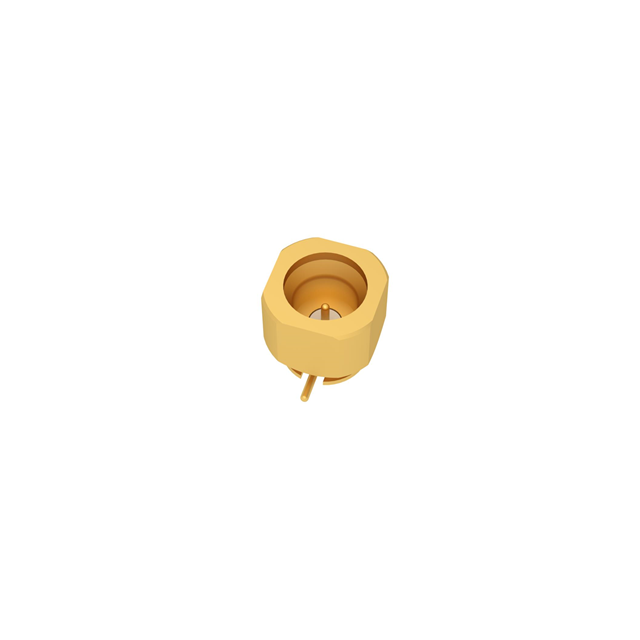

Image shown is a representation only
Manufacturer
Manufacturer No
R201508700
Packaging
Tape & Reel (TR)
Description
SMPM / STRAIGHT MALE RECEPTACLE
Detailed Description
SMPM Connector Receptacle, Male Pin 50 Ohms Surface Mount Solder
DataSheet
Mfr
Radiall USA, Inc.
Features
Smooth Bore
Impedance
50 Ohms
Packaging
Tape & Reel (TR)
Body Finish
Gold
Part Status
Active
Body Material
Beryllium Copper
Housing Color
Gold
Mating Cycles
500
Mounting Type
Surface Mount
Connector Type
Receptacle, Male Pin
Fastening Type
Snap-On
Voltage Rating
335 V
Connector Style
SMPM
Frequency - Max
20 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
R20150
Contact Termination
Solder
Dielectric Material
Polyetheretherketone (PEEK)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Features | Smooth Bore |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR) |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Beryllium Copper |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Male Pin |
| Fastening Type | Snap-On |
| Voltage Rating | 335 V |
| Connector Style | SMPM |
| Frequency - Max | 20 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | R20150 |
| Contact Termination | Solder |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
