Step1: Product
Radiall USA, Inc. R201508040

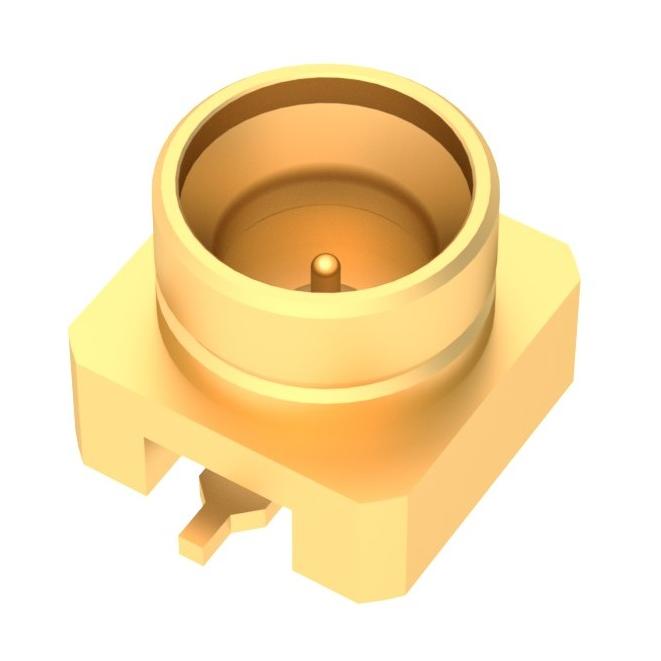

Image shown is a representation only
Manufacturer
Manufacturer No
R201508040
Packaging
Bulk
Description
SMPM / STRAIGHT MALE RECEPTACLE
Detailed Description
SMPM Connector Jack, Male Pin 50 Ohms Surface Mount Solder
DataSheet
Mfr
Radiall USA, Inc.
Impedance
50 Ohms
Packaging
Bulk
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
100
Mounting Type
Surface Mount
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Voltage Rating
325 V
Connector Style
SMPM
Frequency - Max
65 GHz
Number of Ports
1
Shield Termination
Solder
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 100 |
| Mounting Type | Surface Mount |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Voltage Rating | 325 V |
| Connector Style | SMPM |
| Frequency - Max | 65 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Material | Beryllium Copper |
