Step1: Product

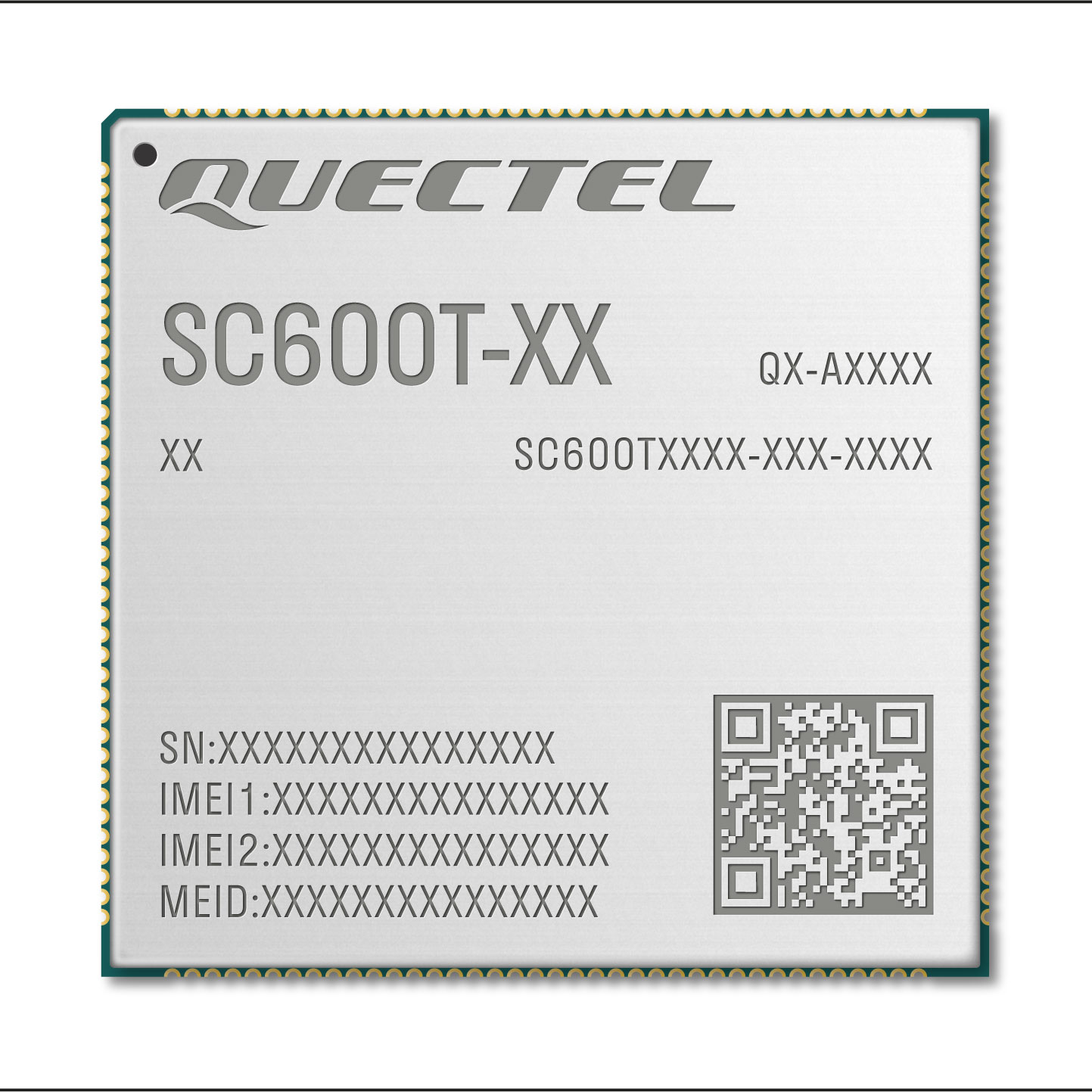

Quectel SC600TJPPA-E53-UGADA
Image shown is a representation only
Manufacturer
Manufacturer No
SC600TJPPA-E53-UGADA
Package
Module
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RF TXRX MOD BT NAV WIFISMD
Detailed Description
Bluetooth, Navigation, WiFi 802.11a/b/g/n/ac, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, GLONASS, GPS, GNSS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
DataSheet
Mfr
Quectel
Series
SC600T
Protocol
802.11a/b/g/n/ac, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, GLONASS, GPS, GNSS
Data Rate
300Mbps
Frequency
850MHz, 900MHz, 1.8GHz, 1.9GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Obsolete
Antenna Type
Antenna Not Included
Mounting Type
Surface Mount
Package / Case
Module
Power - Output
33dBm
Voltage - Supply
3.55V ~ 4.4V
Serial Interfaces
ADC, GPIO, I2C, I2S, SDIO, UART, SPI, USB
RF Family/Standard
Bluetooth, Navigation, WiFi
Utilized IC / Part
Qualcomm® Snapdragon MSM8953-B
Base Product Number
SC600
DigiKey Programmable
Not Verified
Operating Temperature
-35°C ~ 65°C
| Attribute | Value |
|---|---|
| Mfr | Quectel |
| Series | SC600T |
| Protocol | 802.11a/b/g/n/ac, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, GLONASS, GPS, GNSS |
| Data Rate | 300Mbps |
| Frequency | 850MHz, 900MHz, 1.8GHz, 1.9GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Obsolete |
| Antenna Type | Antenna Not Included |
| Mounting Type | Surface Mount |
| Package / Case | Module |
| Power - Output | 33dBm |
| Voltage - Supply | 3.55V ~ 4.4V |
| Serial Interfaces | ADC, GPIO, I2C, I2S, SDIO, UART, SPI, USB |
| RF Family/Standard | Bluetooth, Navigation, WiFi |
| Utilized IC / Part | Qualcomm® Snapdragon MSM8953-B |
| Base Product Number | SC600 |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -35°C ~ 65°C |
