Step1: Product

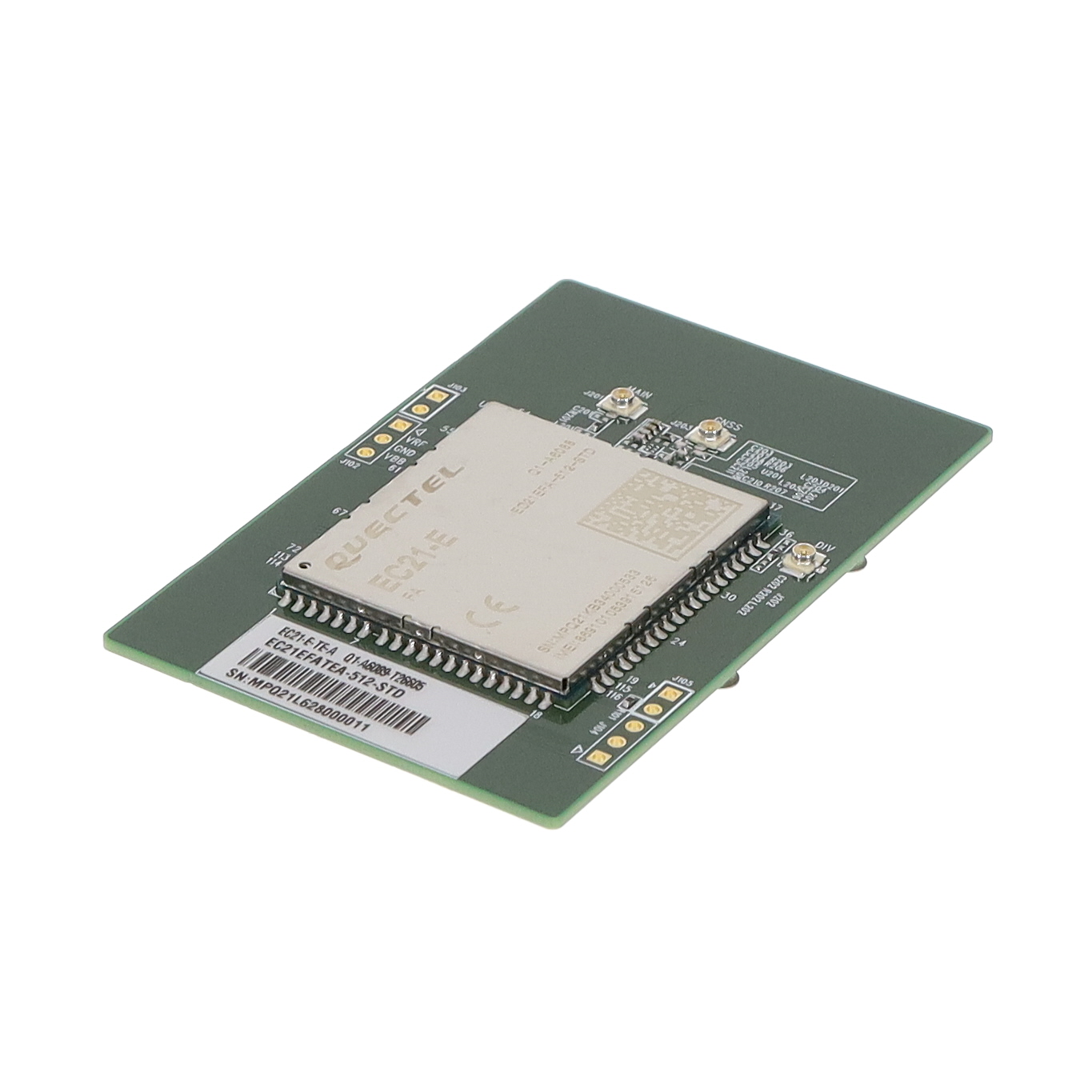

Quectel EC21EFA-512-STD
Image shown is a representation only
Manufacturer
Manufacturer No
EC21EFA-512-STD
Package
Module
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RF TXRX MOD CELLULARCARD EDGE
Detailed Description
Cellular GSM, LTE, WCDMA Transceiver Module Antenna Not Included Card Edge
DataSheet
Mfr
Quectel
Protocol
GSM, LTE, WCDMA
Data Rate
10Mbps
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Sensitivity
-102dBm
Antenna Type
Antenna Not Included
Mounting Type
Card Edge
Package / Case
Module
Power - Output
33dBm
Voltage - Supply
3V ~ 3.6V
Serial Interfaces
UART, USB
RF Family/Standard
Cellular
Utilized IC / Part
MDM9207-1
Base Product Number
EC21
Current - Receiving
34mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 80°C
Current - Transmitting
34mA
| Attribute | Value |
|---|---|
| Mfr | Quectel |
| Protocol | GSM, LTE, WCDMA |
| Data Rate | 10Mbps |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Sensitivity | -102dBm |
| Antenna Type | Antenna Not Included |
| Mounting Type | Card Edge |
| Package / Case | Module |
| Power - Output | 33dBm |
| Voltage - Supply | 3V ~ 3.6V |
| Serial Interfaces | UART, USB |
| RF Family/Standard | Cellular |
| Utilized IC / Part | MDM9207-1 |
| Base Product Number | EC21 |
| Current - Receiving | 34mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 80°C |
| Current - Transmitting | 34mA |
