Step1: Product

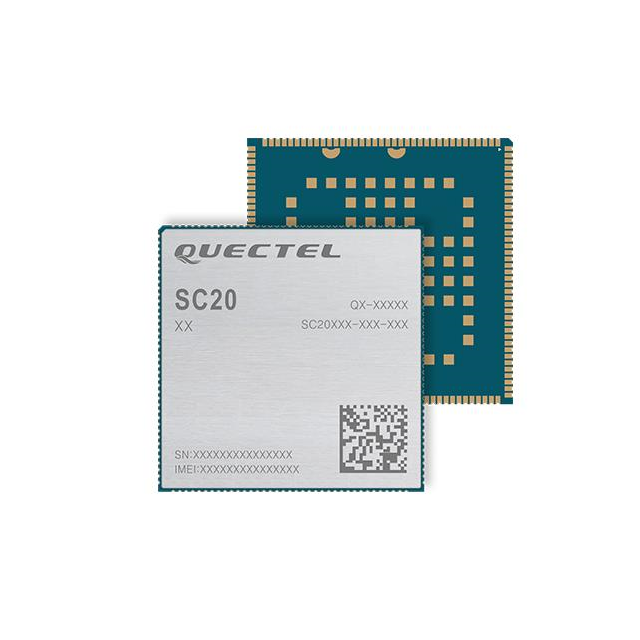

Quectel SC20EUSB-16GB-UGAD
Image shown is a representation only
Manufacturer
Manufacturer No
SC20EUSB-16GB-UGAD
Package
Module
Packaging
Tape & Reel (TR)
Description
RF TXRX MOD BT CELL NAV WIFISMD
Detailed Description
Bluetooth, Cellular, Navigation, WiFi 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, Galileo, GLONASS, GPS, GNSS Transceiver Module 800MHz, 900MHz, 1.8GHz, 1.9GHz, 2.4GHz, 5GHz Antenna Not Included Surface Mount
DataSheet
Mfr
Quectel
Series
SC20
Protocol
802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, Galileo, GLONASS, GPS, GNSS
Data Rate
150Mbps
Frequency
800MHz, 900MHz, 1.8GHz, 1.9GHz, 2.4GHz, 5GHz
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Antenna Type
Antenna Not Included
Mounting Type
Surface Mount
Package / Case
Module
Voltage - Supply
3.5V ~ 4.2V
Serial Interfaces
ADC, GPIO, I2C, PCM, PWM, UART, USB
RF Family/Standard
Bluetooth, Cellular, Navigation, WiFi
Base Product Number
SC20
DigiKey Programmable
Not Verified
Operating Temperature
-35°C ~ 75°C
| Attribute | Value |
|---|---|
| Mfr | Quectel |
| Series | SC20 |
| Protocol | 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, Galileo, GLONASS, GPS, GNSS |
| Data Rate | 150Mbps |
| Frequency | 800MHz, 900MHz, 1.8GHz, 1.9GHz, 2.4GHz, 5GHz |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Antenna Type | Antenna Not Included |
| Mounting Type | Surface Mount |
| Package / Case | Module |
| Voltage - Supply | 3.5V ~ 4.2V |
| Serial Interfaces | ADC, GPIO, I2C, PCM, PWM, UART, USB |
| RF Family/Standard | Bluetooth, Cellular, Navigation, WiFi |
| Base Product Number | SC20 |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -35°C ~ 75°C |
