Step1: Product
Quectel M66FBTEA-03-STD

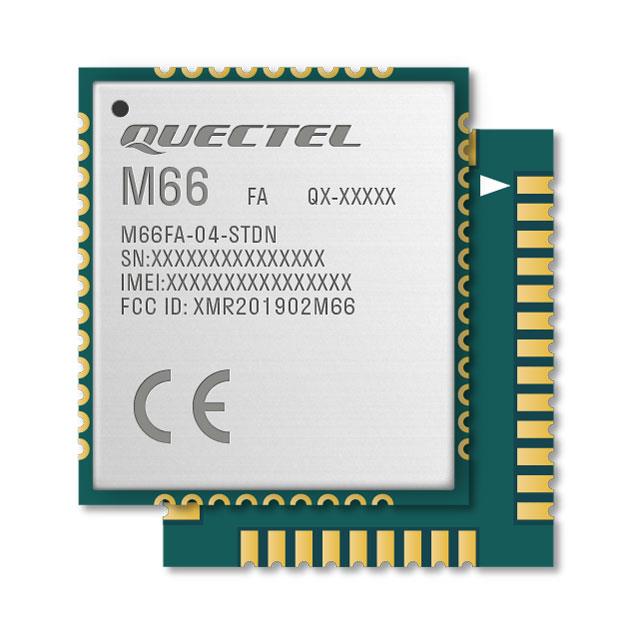

Image shown is a representation only
Manufacturer
Manufacturer No
M66FBTEA-03-STD
Package
52-SMD Module
Packaging
Box
Description
RF TXRX MOD BT CELLSMD
Detailed Description
Bluetooth, Cellular Bluetooth v3.0, GSM, GPRS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
DataSheet
Mfr
Quectel
Protocol
Bluetooth v3.0, GSM, GPRS
Data Rate
85.6kbps
Frequency
850MHz, 900MHz, 1.8GHz, 1.9GHz
Packaging
Box
Part Status
Obsolete
Sensitivity
-109dBm
Antenna Type
Antenna Not Included
Mounting Type
Surface Mount
Package / Case
52-SMD Module
Voltage - Supply
3.3V ~ 4.6V
Serial Interfaces
UART
RF Family/Standard
Bluetooth, Cellular
Base Product Number
M66
Current - Receiving
1.3mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Mfr | Quectel |
| Protocol | Bluetooth v3.0, GSM, GPRS |
| Data Rate | 85.6kbps |
| Frequency | 850MHz, 900MHz, 1.8GHz, 1.9GHz |
| Packaging | Box |
| Part Status | Obsolete |
| Sensitivity | -109dBm |
| Antenna Type | Antenna Not Included |
| Mounting Type | Surface Mount |
| Package / Case | 52-SMD Module |
| Voltage - Supply | 3.3V ~ 4.6V |
| Serial Interfaces | UART |
| RF Family/Standard | Bluetooth, Cellular |
| Base Product Number | M66 |
| Current - Receiving | 1.3mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
