Step1: Product

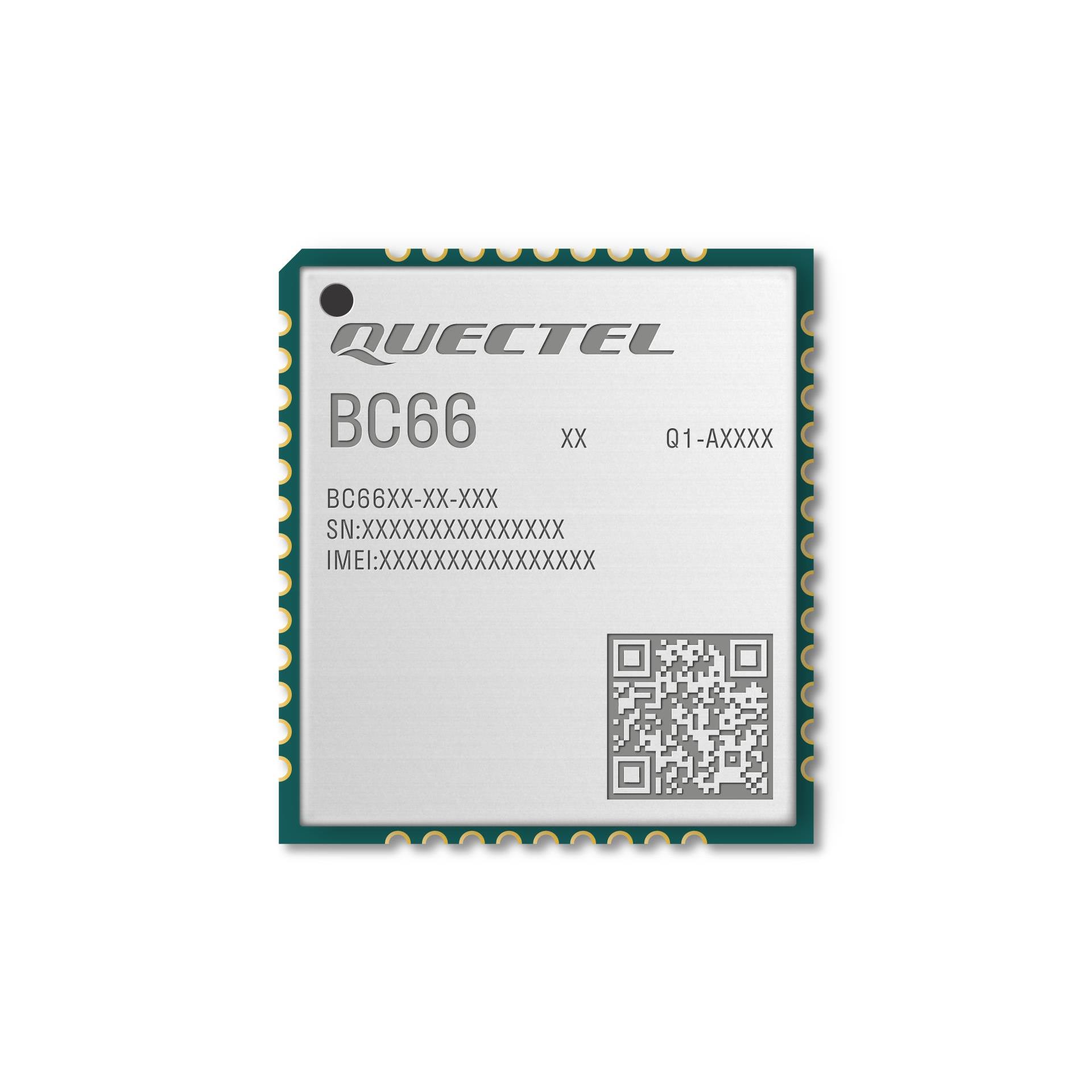

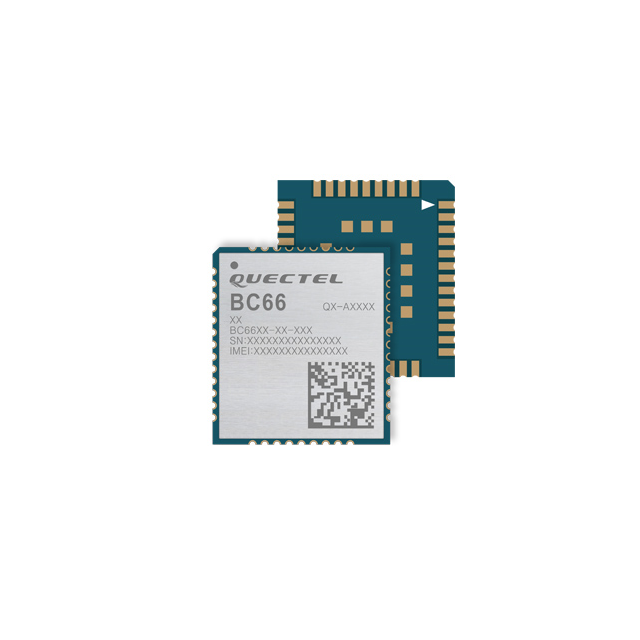

Quectel BC66NB-04-STD
Image shown is a representation only
Manufacturer
Manufacturer No
BC66NB-04-STD
Package
Module
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF TXRX MODULE CELL SMD
Detailed Description
Cellular GPRS, GSM, LTE Transceiver Module Antenna Not Included Surface Mount
DataSheet
Mfr
Quectel
Protocol
GPRS, GSM, LTE
Data Rate
25.5kbps
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Obsolete
Sensitivity
-129dBm
Antenna Type
Antenna Not Included
Mounting Type
Surface Mount
Package / Case
Module
Power - Output
23dBm
Voltage - Supply
2.1V ~ 3.63V
Serial Interfaces
ADC, UART, USB
RF Family/Standard
Cellular
Utilized IC / Part
MT2625DA
Base Product Number
BC66
DigiKey Programmable
Not Verified
Operating Temperature
-35°C ~ 75°C
| Attribute | Value |
|---|---|
| Mfr | Quectel |
| Protocol | GPRS, GSM, LTE |
| Data Rate | 25.5kbps |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Obsolete |
| Sensitivity | -129dBm |
| Antenna Type | Antenna Not Included |
| Mounting Type | Surface Mount |
| Package / Case | Module |
| Power - Output | 23dBm |
| Voltage - Supply | 2.1V ~ 3.63V |
| Serial Interfaces | ADC, UART, USB |
| RF Family/Standard | Cellular |
| Utilized IC / Part | MT2625DA |
| Base Product Number | BC66 |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -35°C ~ 75°C |
