Step1: Product

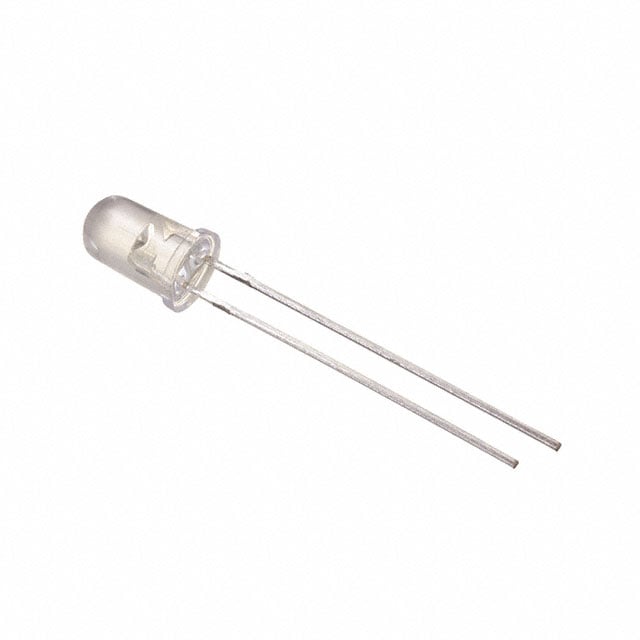

QT Brightek (QTB) QBL8SA15C
Image shown is a representation only
Manufacturer
Manufacturer No
QBL8SA15C
Package
Radial
Packaging
Bulk
Description
LED RED CLEAR T-1 3/4 T/H
Detailed Description
Red 640nm LED Indication - Discrete 2V Radial
DataSheet
Mfr
QT Brightek (QTB)
Color
Red
Series
QBL8XX15Y
Lens Size
5.00mm Dia
Packaging
Bulk
Lens Color
Colorless
Lens Style
Round with Domed Top
Part Status
Active
Height (Max)
8.90mm
Configuration
Standard
Mounting Type
Through Hole
Viewing Angle
15°
Current - Test
20mA
Package / Case
Radial
Size / Dimension
5.00mm Dia
Lens Transparency
Clear
Base Product Number
QBL8SA15
Millicandela Rating
350mcd
Wavelength - Dominant
640nm
Supplier Device Package
T-1 3/4 (5mm)
Voltage - Forward (Vf) (Typ)
2V
| Attribute | Value |
|---|---|
| Mfr | QT Brightek (QTB) |
| Color | Red |
| Series | QBL8XX15Y |
| Lens Size | 5.00mm Dia |
| Packaging | Bulk |
| Lens Color | Colorless |
| Lens Style | Round with Domed Top |
| Part Status | Active |
| Height (Max) | 8.90mm |
| Configuration | Standard |
| Mounting Type | Through Hole |
| Viewing Angle | 15° |
| Current - Test | 20mA |
| Package / Case | Radial |
| Size / Dimension | 5.00mm Dia |
| Lens Transparency | Clear |
| Base Product Number | QBL8SA15 |
| Millicandela Rating | 350mcd |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | T-1 3/4 (5mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
