Step1: Product

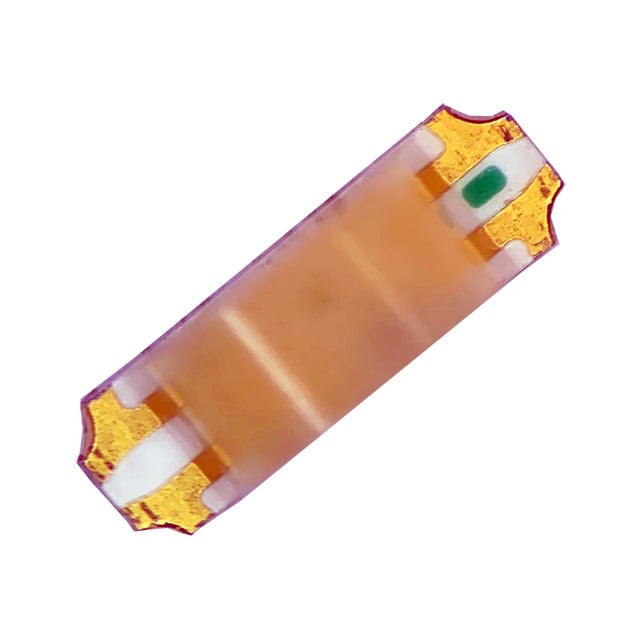

QT Brightek (QTB) QBLP615-RGB-3053
Image shown is a representation only
Manufacturer
Manufacturer No
QBLP615-RGB-3053
Package
1206 (3216 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED RGB DIFFUSED 1206 SMD R/A
Detailed Description
Red, Green, Blue (RGB) 620nm Red, 527nm Green, 470nm Blue LED Indication - Discrete 2V Red, 2.7V Green, 2.8V Blue 1206 (3216 Metric)
DataSheet
Mfr
QT Brightek (QTB)
Color
Red, Green, Blue (RGB)
Series
QBLP615
Lens Size
2.00mm x 1.00mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Color
Colorless
Lens Style
Rectangle with Domed Top
Part Status
Active
Height (Max)
1.10mm
Configuration
Common Anode
Mounting Type
Surface Mount, Right Angle
Viewing Angle
150°
Current - Test
9.8mA Red, 7mA Green, 6mA Blue
Package / Case
1206 (3216 Metric)
Size / Dimension
3.20mm L x 1.30mm W
Lens Transparency
Diffused
Base Product Number
QBLP615
Millicandela Rating
116mcd Red, 363mcd Green, 63mcd Blue
Wavelength - Dominant
620nm Red, 527nm Green, 470nm Blue
Supplier Device Package
1206
Voltage - Forward (Vf) (Typ)
2V Red, 2.7V Green, 2.8V Blue
| Attribute | Value |
|---|---|
| Mfr | QT Brightek (QTB) |
| Color | Red, Green, Blue (RGB) |
| Series | QBLP615 |
| Lens Size | 2.00mm x 1.00mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Color | Colorless |
| Lens Style | Rectangle with Domed Top |
| Part Status | Active |
| Height (Max) | 1.10mm |
| Configuration | Common Anode |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | 150° |
| Current - Test | 9.8mA Red, 7mA Green, 6mA Blue |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 3.20mm L x 1.30mm W |
| Lens Transparency | Diffused |
| Base Product Number | QBLP615 |
| Millicandela Rating | 116mcd Red, 363mcd Green, 63mcd Blue |
| Wavelength - Dominant | 620nm Red, 527nm Green, 470nm Blue |
| Supplier Device Package | 1206 |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.7V Green, 2.8V Blue |
