Step1: Product
Pulse Electronics PH9407.404NLT

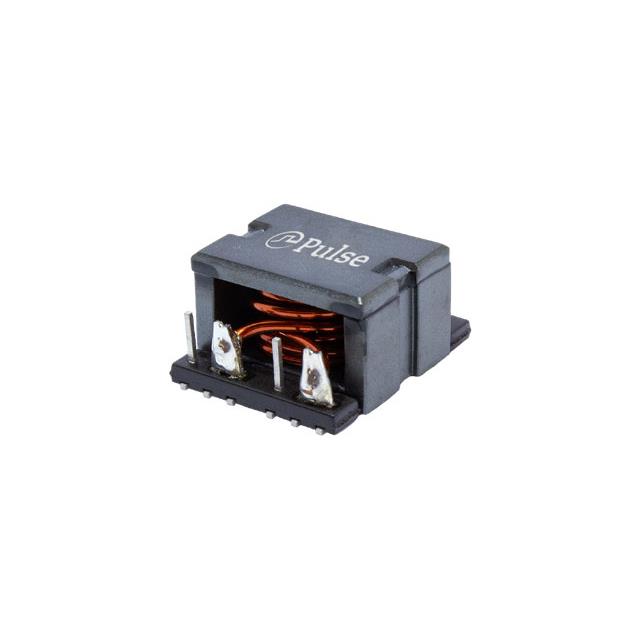

Image shown is a representation only
Manufacturer
Manufacturer No
PH9407.404NLT
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CMC 12A 2LN 1.72 KOHM SMD
Detailed Description
2 Line Common Mode Choke Surface Mount 1.72 kOhms @ 1.56 MHz 12A DCR 5.3mOhm
DataSheet
Series
PH9407
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Height (Max)
0.665" (16.90mm)
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Lines
2
Size / Dimension
0.961" L x 0.850" W (24.40mm x 21.60mm)
Current Rating (Max)
12A
Impedance @ Frequency
1.72 kOhms @ 1.56 MHz
Operating Temperature
-40°C ~ 125°C
DC Resistance (DCR) (Max)
5.3mOhm
| Attribute | Value |
|---|---|
| Series | PH9407 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Height (Max) | 0.665" (16.90mm) |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Lines | 2 |
| Size / Dimension | 0.961" L x 0.850" W (24.40mm x 21.60mm) |
| Current Rating (Max) | 12A |
| Impedance @ Frequency | 1.72 kOhms @ 1.56 MHz |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) (Max) | 5.3mOhm |
