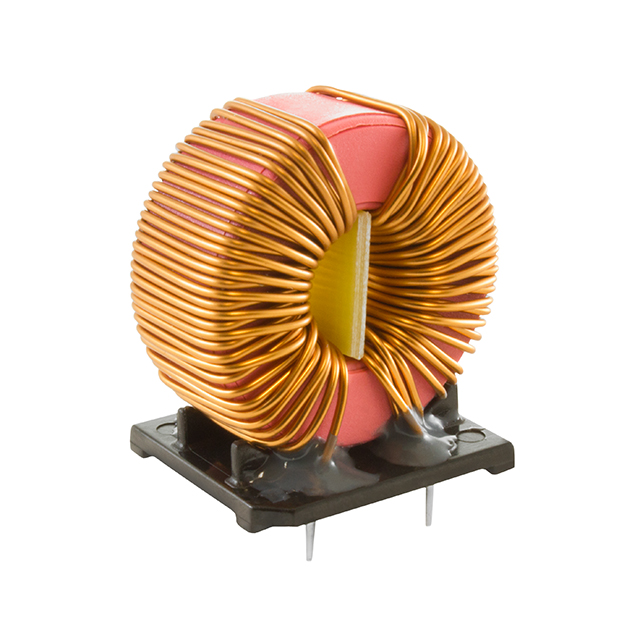

Pulse Electronics PH9455.205NL
Image shown is a representation only
Manufacturer
Manufacturer No
PH9455.205NL
Quantity
908
Availability
In Stock
Package
Vertical, 4 PC Pin
Packaging
Tray
Description
CMC 2.2MH 16A 2LN 2.6 KOHM TH
Detailed Description
2.2 mH @ 8.39 MHz 2 Line Common Mode Choke Through Hole 2.6 kOhms @ 8.39 MHz 16A DCR 4.5mOhm
DataSheet
Packaging
Tray
Part Status
Active
Height (Max)
1.102" (28.00mm)
Manufacturer
Pulse Electronics
Mounting Type
Through Hole
Package / Case
Vertical, 4 PC Pin
Number of Lines
2
Size / Dimension
1.181" L x 0.748" W (30.00mm x 19.00mm)
Voltage Rating - AC
250V
Current Rating (Max)
16A
Impedance @ Frequency
2.6 kOhms @ 8.39 MHz
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
2.2 mH @ 8.39 MHz
DC Resistance (DCR) (Max)
4.5mOhm
| Attribute | Value |
|---|---|
| Packaging | Tray |
| Part Status | Active |
| Height (Max) | 1.102" (28.00mm) |
| Manufacturer | Pulse Electronics |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Number of Lines | 2 |
| Size / Dimension | 1.181" L x 0.748" W (30.00mm x 19.00mm) |
| Voltage Rating - AC | 250V |
| Current Rating (Max) | 16A |
| Impedance @ Frequency | 2.6 kOhms @ 8.39 MHz |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 2.2 mH @ 8.39 MHz |
| DC Resistance (DCR) (Max) | 4.5mOhm |
