Step1: Product
Pulse Electronics PA4339.101NLT

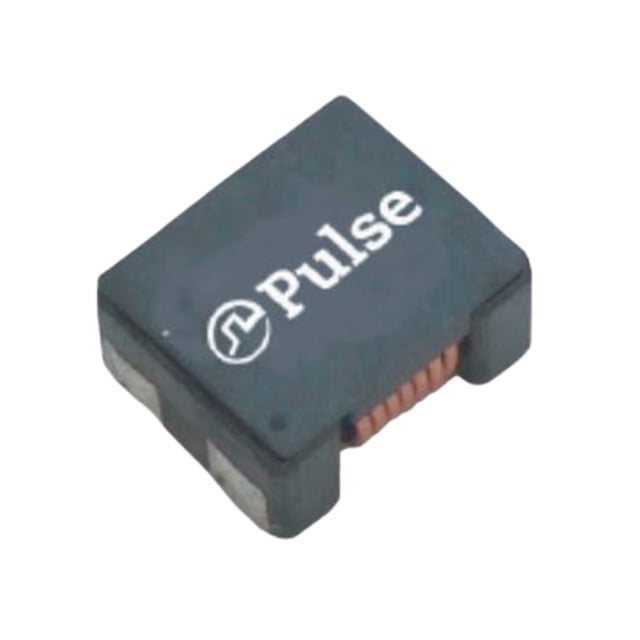

Image shown is a representation only
Manufacturer
Manufacturer No
PA4339.101NLT
Quantity
565
Availability
In Stock
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CMC 1.8UH 9A 2LN 140 OHM SMD
Detailed Description
1.8 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 140 Ohms @ 100 MHz 9A DCR 10mOhm
DataSheet
Series
PA4339
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Height (Max)
0.150" (3.80mm)
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.276" L x 0.236" W (7.00mm x 6.00mm)
Voltage Rating - DC
80V
Current Rating (Max)
9A
Impedance @ Frequency
140 Ohms @ 100 MHz
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
1.8 µH @ 100 kHz
DC Resistance (DCR) (Max)
10mOhm
| Attribute | Value |
|---|---|
| Series | PA4339 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Height (Max) | 0.150" (3.80mm) |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.276" L x 0.236" W (7.00mm x 6.00mm) |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 9A |
| Impedance @ Frequency | 140 Ohms @ 100 MHz |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 1.8 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | 10mOhm |
