Step1: Product

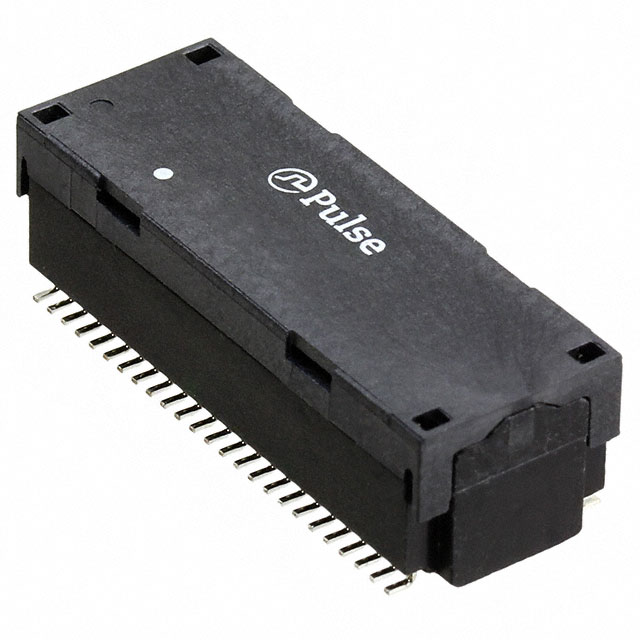

Pulse Electronics HX5020FNL
Image shown is a representation only
Manufacturer
Manufacturer No
HX5020FNL
Packaging
Tube
Description
PULSE XFMR 1 CT:1CT TX/RX 350UH
Detailed Description
350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
Packaging
Tube
Inductance
350µH
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Size / Dimension
1.100" L x 0.395" W (27.94mm x 10.03mm)
Transformer Type
LAN 10/100/1000 Base-T
Height - Seated (Max)
0.340" (8.64mm)
Operating Temperature
-40°C ~ 85°C
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
| Attribute | Value |
|---|---|
| Packaging | Tube |
| Inductance | 350µH |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Size / Dimension | 1.100" L x 0.395" W (27.94mm x 10.03mm) |
| Transformer Type | LAN 10/100/1000 Base-T |
| Height - Seated (Max) | 0.340" (8.64mm) |
| Operating Temperature | -40°C ~ 85°C |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver |
