Step1: Product

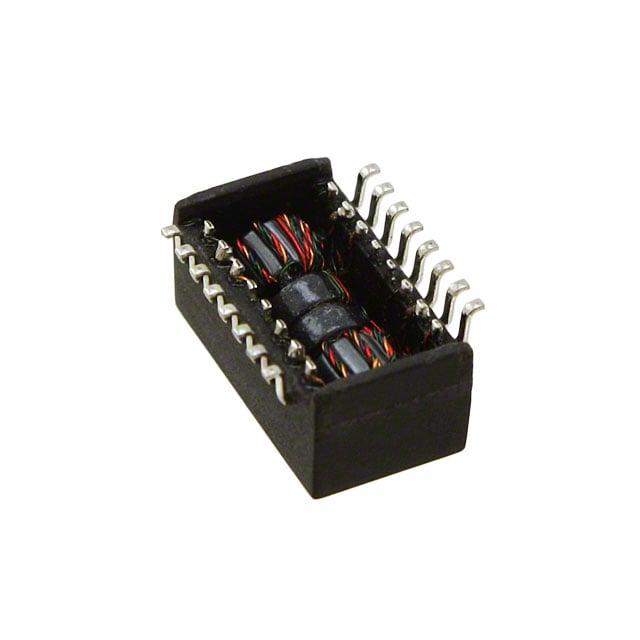

Pulse Electronics HX1188NLT
Image shown is a representation only
Manufacturer
Manufacturer No
HX1188NLT
Quantity
18313
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
XFRMR MAGNETIC 1PORT 1:1 10/100
Detailed Description
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Transmitter, 1:1 Receiver Surface Mount
DataSheet
Weight
0.03 oz (0.85 g)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Size / Dimension
0.500" L x 0.280" W (12.70mm x 7.11mm)
Transformer Type
Isolation and Data Interface (Encapsulated)
Height - Seated (Max)
0.245" (6.22mm)
Operating Temperature
-40°C ~ 85°C
Turns Ratio - Primary:Secondary
1:1 Transmitter, 1:1 Receiver
| Attribute | Value |
|---|---|
| Weight | 0.03 oz (0.85 g) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.500" L x 0.280" W (12.70mm x 7.11mm) |
| Transformer Type | Isolation and Data Interface (Encapsulated) |
| Height - Seated (Max) | 0.245" (6.22mm) |
| Operating Temperature | -40°C ~ 85°C |
| Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
