Step1: Product

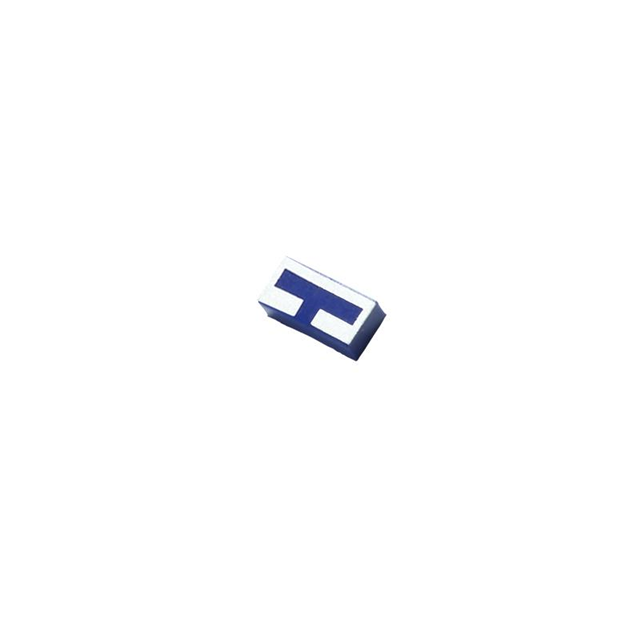

Pulse Electronics ANT3216LL11R2455A
Image shown is a representation only
Manufacturer
Manufacturer No
ANT3216LL11R2455A
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
ANTENNA CHIP 2.5/5G PIFA-C
Detailed Description
RF ANTENNA 4G, 5G, Bluetooth, ISM, Wi-Fi, Zigbee™ Chip Solder Surface Mount
Datasheet
Gain
0.45dBi, 0.64dBi
Series
3216
Packaging
Tape & Reel (TR); Cut Tape (CT)
Power - Max
1 W
Return Loss
6.5dB
Termination
Solder
Antenna Type
Chip
Applications
4G, 5G, Bluetooth, ISM, Wi-Fi, Zigbee™
Height (Max)
0.047" (1.20mm)
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Number of Bands
2
RF Family/Standard
802.15.4, Bluetooth, Cellular, General ISM, WiFi
Base Product Number
ANT3216
Frequency (Center/Band)
2.45GHz, 5.5GHz
| Attribute | Value |
|---|---|
| Gain | 0.45dBi, 0.64dBi |
| Series | 3216 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Power - Max | 1 W |
| Return Loss | 6.5dB |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | 4G, 5G, Bluetooth, ISM, Wi-Fi, Zigbee™ |
| Height (Max) | 0.047" (1.20mm) |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Number of Bands | 2 |
| RF Family/Standard | 802.15.4, Bluetooth, Cellular, General ISM, WiFi |
| Base Product Number | ANT3216 |
| Frequency (Center/Band) | 2.45GHz, 5.5GHz |
