Pulse Electronics ANT3216LL02R6580A

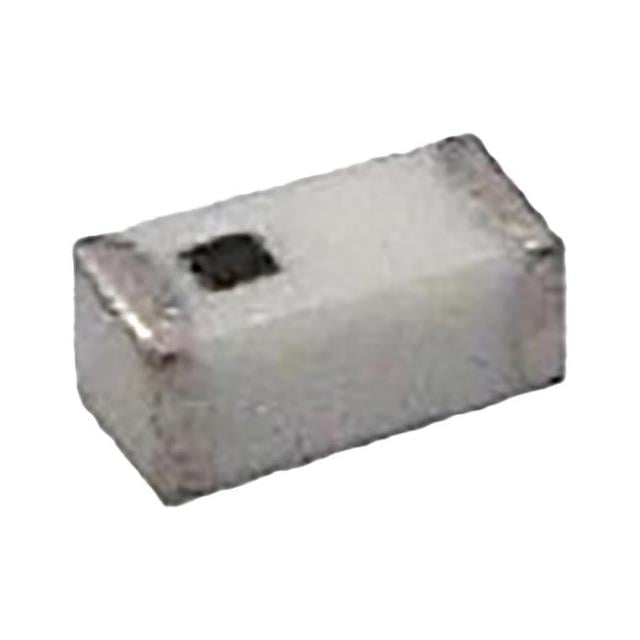

Image shown is a representation only
Manufacturer
Manufacturer No
ANT3216LL02R6580A
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
3216 UWB 6.5-8GHZ CHIP ANTENNA
Detailed Description
RF ANTENNA UWB Chip Solder Surface Mount
DataSheet
Gain
7.3dBi
Grade
Automotive
Series
3216
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Power - Max
1 W
Return Loss
10dB
Termination
Solder
Antenna Type
Chip
Applications
UWB
Height (Max)
0.047" (1.20mm)
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Qualification
AEC-Q200
Frequency Group
Wide Band
Frequency Range
6.2GHz ~ 8.5GHz
Number of Bands
1
RF Family/Standard
General ISM
Frequency (Center/Band)
7.35GHz
| Attribute | Value |
|---|---|
| Gain | 7.3dBi |
| Grade | Automotive |
| Series | 3216 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Power - Max | 1 W |
| Return Loss | 10dB |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | UWB |
| Height (Max) | 0.047" (1.20mm) |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q200 |
| Frequency Group | Wide Band |
| Frequency Range | 6.2GHz ~ 8.5GHz |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Frequency (Center/Band) | 7.35GHz |
