Step1: Product
PTR Hartmann P36SMT 301TR

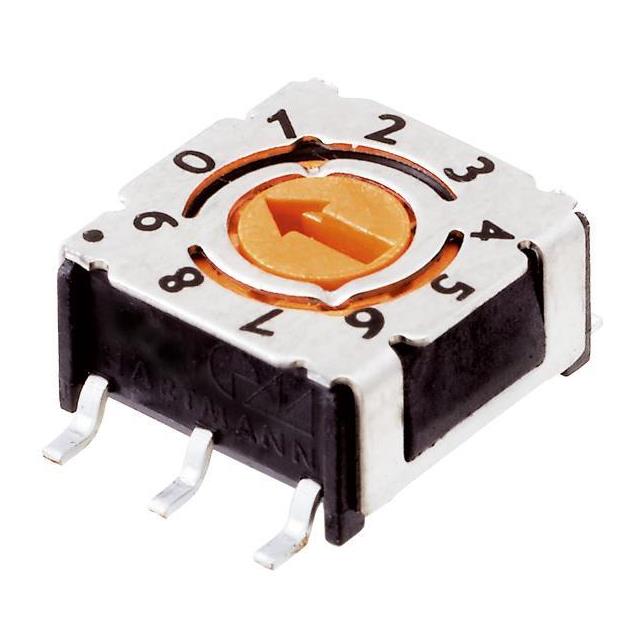

Image shown is a representation only
Manufacturer
Manufacturer No
P36SMT 301TR
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH ROTARY DIP BCD 10POS SPI
Detailed Description
Dip Switch BCD 10 Position Surface Mount Rotary for Tool Actuator 42VAC/DC
DataSheet
Pitch
0.100" (2.54mm), Full
Length
0.291" (7.40mm)
Series
P36SMT
Circuit
BCD
Washable
Yes
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
PTR Hartmann
Actuator Type
Rotary for Tool
Mounting Type
Surface Mount
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
42VAC/DC
Mechanical Life
25,000 Steps
Termination Style
Gull Wing
Height Above Board
0.152" (3.85mm)
Number of Positions
10
Operating Temperature
-50°C ~ 125°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.291" (7.40mm) |
| Series | P36SMT |
| Circuit | BCD |
| Washable | Yes |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | PTR Hartmann |
| Actuator Type | Rotary for Tool |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 42VAC/DC |
| Mechanical Life | 25,000 Steps |
| Termination Style | Gull Wing |
| Height Above Board | 0.152" (3.85mm) |
| Number of Positions | 10 |
| Operating Temperature | -50°C ~ 125°C |
