Step1: Product

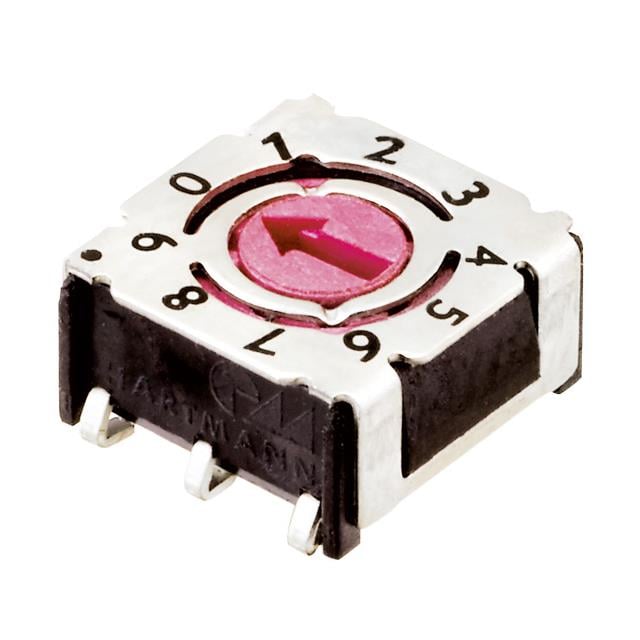

PTR Hartmann P36SMJ 101TR
Image shown is a representation only
Manufacturer
Manufacturer No
P36SMJ 101TR
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH ROTARY DIP BCD 10POS ARR
Detailed Description
Dip Switch BCD 10 Position Surface Mount Rotary for Tool Actuator 100mA 42VDC
DataSheet
Pitch
0.100" (2.54mm), Full
Length
0.291" (7.40mm)
Series
P36SMJ
Circuit
BCD
Washable
Yes
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
PTR Hartmann
Actuator Type
Rotary for Tool
Mounting Type
Surface Mount
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
42VDC
Mechanical Life
25,000 Steps
Termination Style
J Lead
Height Above Board
0.154" (3.90mm)
Number of Positions
10
Current Rating (Amps)
100mA
Operating Temperature
-50°C ~ 125°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.291" (7.40mm) |
| Series | P36SMJ |
| Circuit | BCD |
| Washable | Yes |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | PTR Hartmann |
| Actuator Type | Rotary for Tool |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 42VDC |
| Mechanical Life | 25,000 Steps |
| Termination Style | J Lead |
| Height Above Board | 0.154" (3.90mm) |
| Number of Positions | 10 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -50°C ~ 125°C |
