Step1: Product

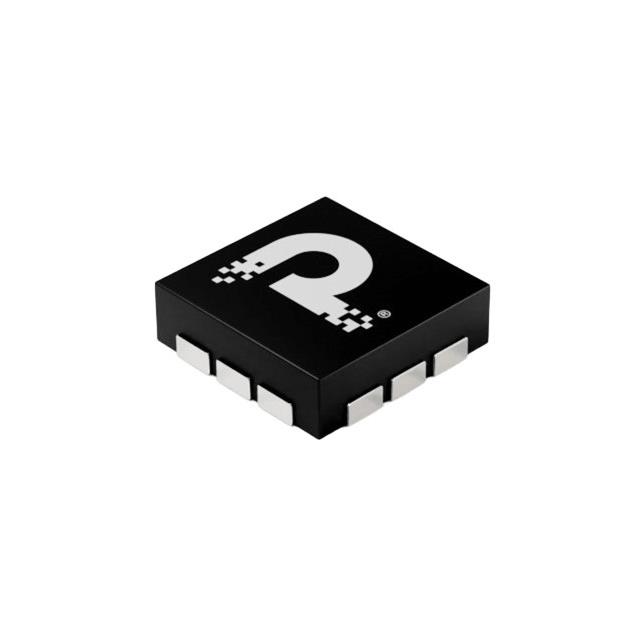

pSemi PE613050A-Z
Image shown is a representation only
Manufacturer
Manufacturer No
PE613050A-Z
Quantity
5387
Availability
In Stock
Package
12-UFQFN Exposed Pad
Packaging
Tape & Reel (TR); -; -
Description
SP4T, OPEN REFLECTIVE, TUNING SW
Detailed Description
RF Switch IC General Purpose SP4T 1.6Ohm 12-QFN (2x2)
DataSheet
IIP3
72dBm
Series
UltraCMOS®
Circuit
SP4T
RF Type
General Purpose
Topology
Reflective
Impedance
1.6Ohm
Isolation
17dB
Packaging
Tape & Reel (TR); -; -
Part Status
Active
Manufacturer
pSemi
Mounting Type
Surface Mount
Insertion Loss
0.5dB
Package / Case
12-UFQFN Exposed Pad
Test Frequency
2.69GHz, 3GHz
Frequency Range
5MHz ~ 3GHz
Voltage - Supply
2.3V ~ 5.5V
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
12-QFN (2x2)
| Attribute | Value |
|---|---|
| IIP3 | 72dBm |
| Series | UltraCMOS® |
| Circuit | SP4T |
| RF Type | General Purpose |
| Topology | Reflective |
| Impedance | 1.6Ohm |
| Isolation | 17dB |
| Packaging | Tape & Reel (TR); -; - |
| Part Status | Active |
| Manufacturer | pSemi |
| Mounting Type | Surface Mount |
| Insertion Loss | 0.5dB |
| Package / Case | 12-UFQFN Exposed Pad |
| Test Frequency | 2.69GHz, 3GHz |
| Frequency Range | 5MHz ~ 3GHz |
| Voltage - Supply | 2.3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 12-QFN (2x2) |
