Step1: Product
pSemi PE42721MLBA-Z

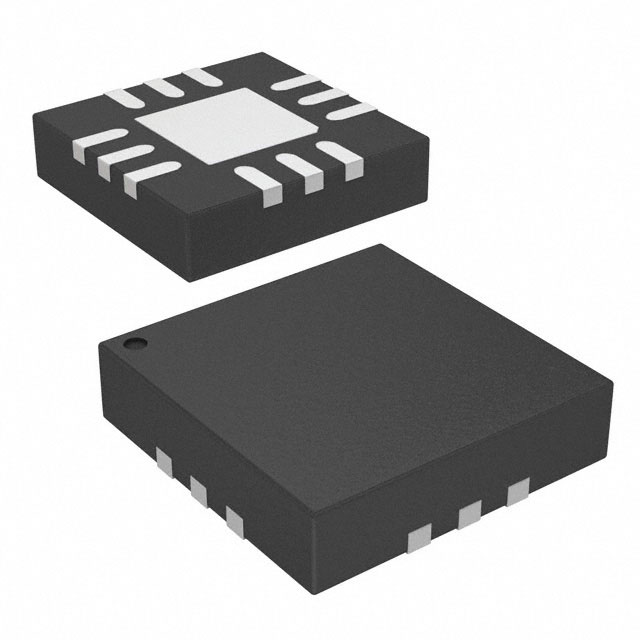

Image shown is a representation only
Manufacturer
Manufacturer No
PE42721MLBA-Z
Quantity
1766
Availability
In Stock
Package
12-WFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC RF SWITCH SPDT 2.2GHZ 12QFN
Detailed Description
RF Switch IC CATV SPDT 2.2 GHz 75Ohm 12-QFN (3x3)
DataSheet
IIP3
60dBm
Series
UltraCMOS®, HaRP™
Circuit
SPDT
RF Type
CATV
Topology
Absorptive
Impedance
75Ohm
Isolation
55dB
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
pSemi
Mounting Type
Surface Mount
Insertion Loss
0.65dB
Package / Case
12-WFQFN Exposed Pad
Test Frequency
2.2GHz
Frequency Range
5MHz ~ 2.2GHz
Voltage - Supply
2.3V ~ 5.5V
Base Product Number
PE42721
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
12-QFN (3x3)
| Attribute | Value |
|---|---|
| IIP3 | 60dBm |
| Series | UltraCMOS®, HaRP™ |
| Circuit | SPDT |
| RF Type | CATV |
| Topology | Absorptive |
| Impedance | 75Ohm |
| Isolation | 55dB |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | pSemi |
| Mounting Type | Surface Mount |
| Insertion Loss | 0.65dB |
| Package / Case | 12-WFQFN Exposed Pad |
| Test Frequency | 2.2GHz |
| Frequency Range | 5MHz ~ 2.2GHz |
| Voltage - Supply | 2.3V ~ 5.5V |
| Base Product Number | PE42721 |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 12-QFN (3x3) |
