Step1: Product

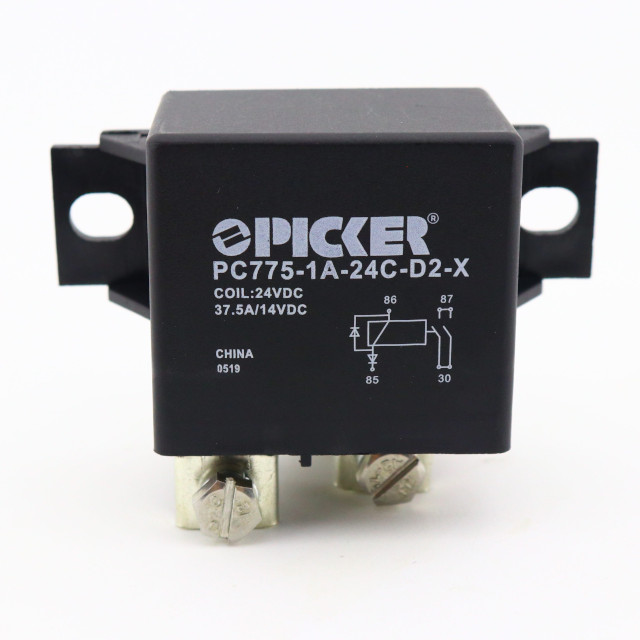

Picker Components PC775-1A-24C-D2-X
Image shown is a representation only
Manufacturer
Manufacturer No
PC775-1A-24C-D2-X
Packaging
Bag
Description
RELAY AUTOMOTIVE SPST 37A 24V
Detailed Description
Automotive Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount
DataSheet
Series
PC775
Features
Diode
Coil Type
Non Latching
Packaging
Bag
Coil Power
2.9W
Part Status
Active
Coil Current
120 mA
Coil Voltage
24VDC
Contact Form
SPST-NO (1 Form A)
Manufacturer
Picker Components
Operate Time
7 ms
Release Time
5 ms
Mounting Type
Chassis Mount
Coil Resistance
200 Ohms
Contact Material
Silver Tin Oxide (AgSnO), Tungsten (W)
Switching Voltage
32VDC - Max
Termination Style
Screw Terminal
Must Operate Voltage
15.6 VDC
Must Release Voltage
4.8 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
75 A
| Attribute | Value |
|---|---|
| Series | PC775 |
| Features | Diode |
| Coil Type | Non Latching |
| Packaging | Bag |
| Coil Power | 2.9W |
| Part Status | Active |
| Coil Current | 120 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Manufacturer | Picker Components |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Mounting Type | Chassis Mount |
| Coil Resistance | 200 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO), Tungsten (W) |
| Switching Voltage | 32VDC - Max |
| Termination Style | Screw Terminal |
| Must Operate Voltage | 15.6 VDC |
| Must Release Voltage | 4.8 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 75 A |
