Step1: Product

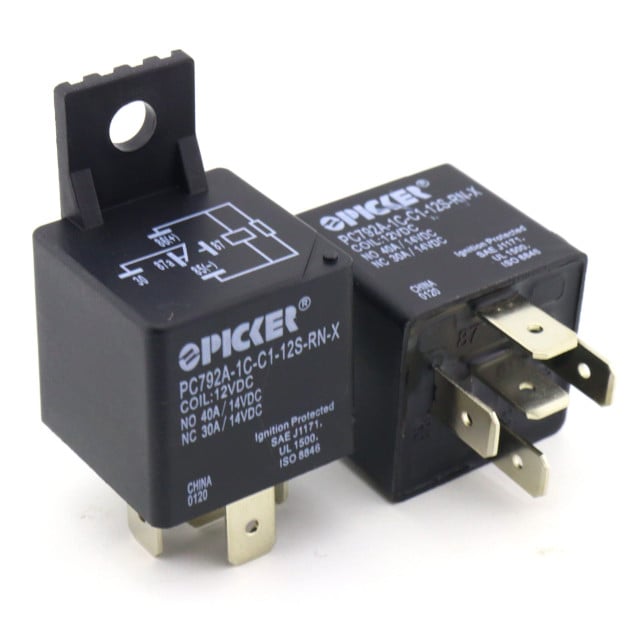

Picker Components PC792A-1C-C1-12S-RN-X

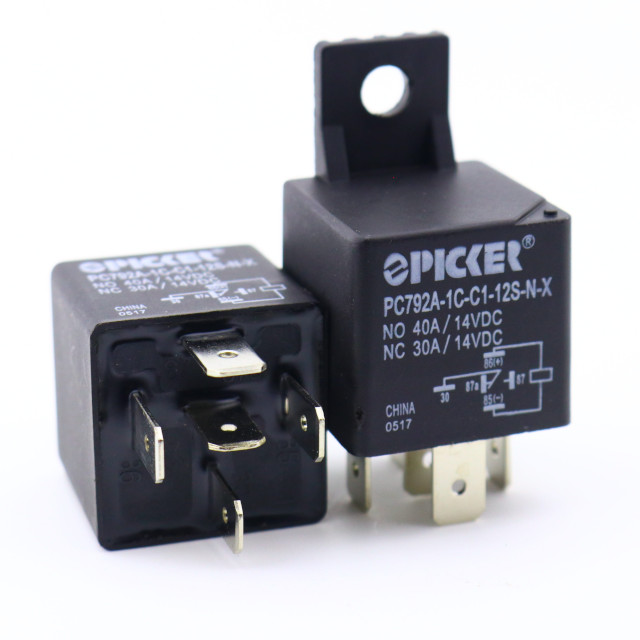

Image shown is a representation only
Manufacturer
Manufacturer No
PC792A-1C-C1-12S-RN-X
Packaging
Bulk
Description
RELAY AUTOMOTIVE SPDT 40A 12V
Detailed Description
Automotive Relay SPDT (1 Form C) 12VDC Coil Chassis Mount
DataSheet
Features
Resistor, Sealed - Fully
Coil Type
Non Latching
Packaging
Bulk
Coil Power
1.6W
Part Status
Active
Coil Current
150 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Manufacturer
Picker Components
Operate Time
7 ms
Release Time
2 ms
Mounting Type
Chassis Mount
Coil Resistance
79.5 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
75VDC - Max
Termination Style
Quick Connect - 0.250" (6.3mm)
Must Operate Voltage
7.8 VDC
Must Release Voltage
1.8 VDC
Operating Temperature
-40°C ~ 125°C
| Attribute | Value |
|---|---|
| Features | Resistor, Sealed - Fully |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Coil Power | 1.6W |
| Part Status | Active |
| Coil Current | 150 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | Picker Components |
| Operate Time | 7 ms |
| Release Time | 2 ms |
| Mounting Type | Chassis Mount |
| Coil Resistance | 79.5 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 75VDC - Max |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Must Operate Voltage | 7.8 VDC |
| Must Release Voltage | 1.8 VDC |
| Operating Temperature | -40°C ~ 125°C |
