Step1: Product

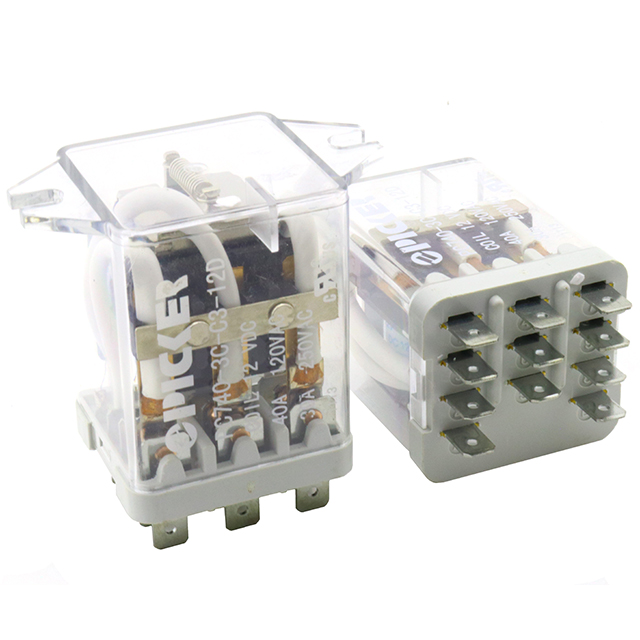

Picker Components PC740-3C-C3-120A
Image shown is a representation only
Manufacturer
Manufacturer No
PC740-3C-C3-120A
Packaging
Bag
Description
RELAY GEN PURPOSE 3PDT 40A 120V
Detailed Description
General Purpose Relay 3PDT (3 Form C) 120VAC Coil Chassis Mount
Datasheet
Mfr
Picker Components
Series
PC740
Coil Type
Non Latching
Packaging
Bag
Relay Type
General Purpose
Coil Current
170 mA
Coil Voltage
120VAC
Contact Form
3PDT (3 Form C)
Operate Time
25 ms
Release Time
15 ms
Mounting Type
Chassis Mount
Approval Agency
CUL, cURus, UL
Coil Insulation
Class B
Coil Resistance
706 Ohms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
250VAC, 28VDC - Max
Termination Style
Quick Connect - 0.250" (6.3mm)
Base Product Number
PC740-3C
Load - Max Switching
10000VA, 1120W
Must Operate Voltage
88 VAC
Must Release Voltage
33 VAC
Operating Temperature
-55°C ~ 70°C
Contact Rating (Current)
40 A
| Attribute | Value |
|---|---|
| Mfr | Picker Components |
| Series | PC740 |
| Coil Type | Non Latching |
| Packaging | Bag |
| Relay Type | General Purpose |
| Coil Current | 170 mA |
| Coil Voltage | 120VAC |
| Contact Form | 3PDT (3 Form C) |
| Operate Time | 25 ms |
| Release Time | 15 ms |
| Mounting Type | Chassis Mount |
| Approval Agency | CUL, cURus, UL |
| Coil Insulation | Class B |
| Coil Resistance | 706 Ohms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 250VAC, 28VDC - Max |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Base Product Number | PC740-3C |
| Load - Max Switching | 10000VA, 1120W |
| Must Operate Voltage | 88 VAC |
| Must Release Voltage | 33 VAC |
| Operating Temperature | -55°C ~ 70°C |
| Contact Rating (Current) | 40 A |
