Step1: Product
Picker Components PC740-3C-C1-220A

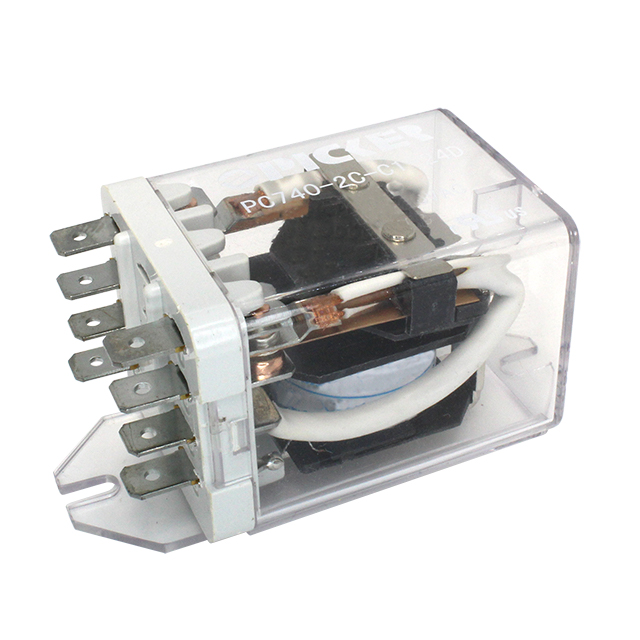

Image shown is a representation only
Manufacturer
Manufacturer No
PC740-3C-C1-220A
Packaging
Bag
Description
RELAY GEN PURPOSE 3PDT 40A 220V
Detailed Description
General Purpose Relay 3PDT (3 Form C) 220VAC Coil Chassis Mount
DataSheet
Mfr
Picker Components
Series
PC740
Coil Type
Non Latching
Packaging
Bag
Relay Type
General Purpose
Part Status
Active
Coil Current
78 mA
Coil Voltage
220VAC
Contact Form
3PDT (3 Form C)
Operate Time
25 ms
Release Time
15 ms
Mounting Type
Chassis Mount
Approval Agency
CUL, cURus, UL
Coil Insulation
Class B
Coil Resistance
2.82 kOhms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
250VAC, 28VDC - Max
Termination Style
Quick Connect - 0.250" (6.3mm)
Base Product Number
PC740-3C
Load - Max Switching
10000VA, 1120W
Must Operate Voltage
192 VAC
Must Release Voltage
66 VAC
Operating Temperature
-55°C ~ 70°C
Contact Rating (Current)
40 A
| Attribute | Value |
|---|---|
| Mfr | Picker Components |
| Series | PC740 |
| Coil Type | Non Latching |
| Packaging | Bag |
| Relay Type | General Purpose |
| Part Status | Active |
| Coil Current | 78 mA |
| Coil Voltage | 220VAC |
| Contact Form | 3PDT (3 Form C) |
| Operate Time | 25 ms |
| Release Time | 15 ms |
| Mounting Type | Chassis Mount |
| Approval Agency | CUL, cURus, UL |
| Coil Insulation | Class B |
| Coil Resistance | 2.82 kOhms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 250VAC, 28VDC - Max |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Base Product Number | PC740-3C |
| Load - Max Switching | 10000VA, 1120W |
| Must Operate Voltage | 192 VAC |
| Must Release Voltage | 66 VAC |
| Operating Temperature | -55°C ~ 70°C |
| Contact Rating (Current) | 40 A |
