PIC GmbH PMC-0701S1520

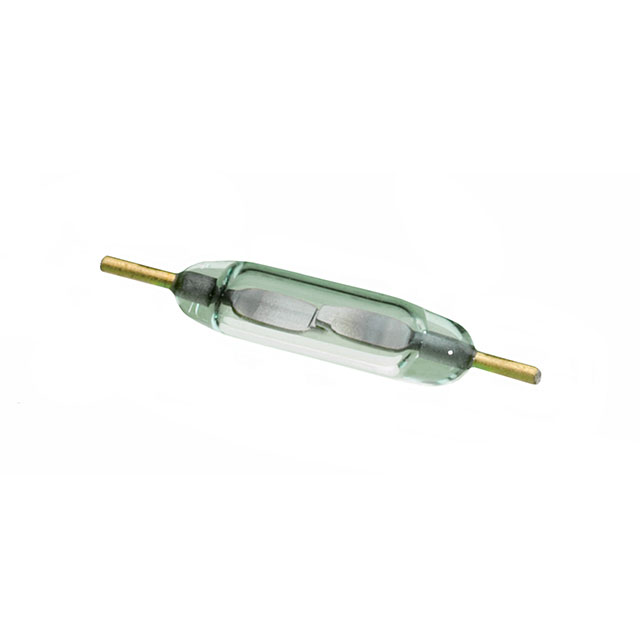

Image shown is a representation only
Manufacturer
Manufacturer No
PMC-0701S1520
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH REED SPST-NO 500MA 120V
Detailed Description
Glass Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 10W 500mA (AC/DC) 120 V Surface Mount
DataSheet
Type
Glass Body Reed
Circuit
SPST-NO
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Size - Body
0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Manufacturer
PIC GmbH
Operate Time
0.3 ms
Release Time
0.1 ms
Mounting Type
Surface Mount
Operate Range
15 ~ 20AT
Power - Rated
10W
Release Range
4AT
Current - Carry
700mA (AC/DC)
Length - Overall
0.394" (10.00mm)
Termination Style
Axial
Current - Switching
500mA (AC/DC)
Operating Temperature
-40°C ~ 125°C
Voltage - Switching AC
120 V
Voltage - Switching DC
150 V
| Attribute | Value |
|---|---|
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Size - Body | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) |
| Manufacturer | PIC GmbH |
| Operate Time | 0.3 ms |
| Release Time | 0.1 ms |
| Mounting Type | Surface Mount |
| Operate Range | 15 ~ 20AT |
| Power - Rated | 10W |
| Release Range | 4AT |
| Current - Carry | 700mA (AC/DC) |
| Length - Overall | 0.394" (10.00mm) |
| Termination Style | Axial |
| Current - Switching | 500mA (AC/DC) |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Switching AC | 120 V |
| Voltage - Switching DC | 150 V |
