Step1: Product

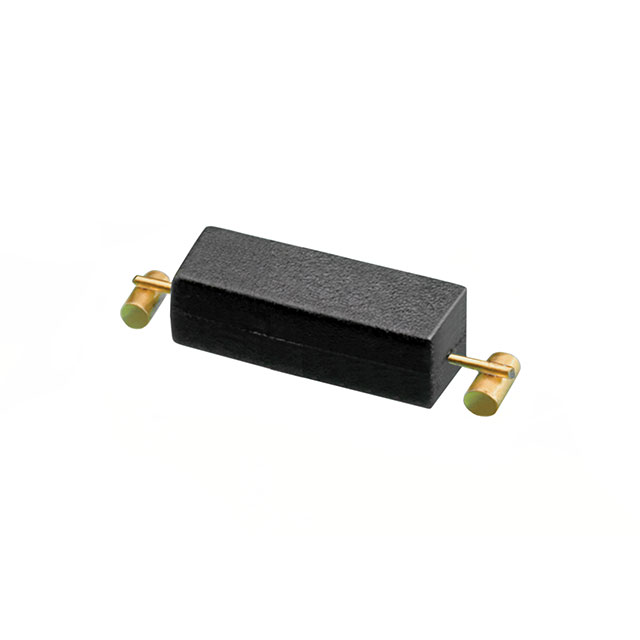

PIC GmbH PMC-0508TH0510
Image shown is a representation only
Manufacturer
Manufacturer No
PMC-0508TH0510
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH REED SPST-NO 250MA 140V
Detailed Description
Molded Body Reed Switch SPST-NO 5 ~ 10AT Operate Range 5W 250mA (AC/DC) 140 V Surface Mount
DataSheet
Type
Molded Body Reed
Circuit
SPST-NO
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Size - Body
0.256" L x 0.114" W x 0.091" H (6.50mm x 2.90mm x 2.30mm)
Manufacturer
PIC GmbH
Operate Time
0.35 ms
Release Time
0.1 ms
Mounting Type
Surface Mount
Operate Range
5 ~ 10AT
Power - Rated
5W
Release Range
2AT
Current - Carry
500mA (AC/DC)
Length - Overall
0.398" (10.11mm)
Termination Style
Axial
Current - Switching
250mA (AC/DC)
Operating Temperature
-40°C ~ 125°C
Voltage - Switching AC
140 V
Voltage - Switching DC
175 V
| Attribute | Value |
|---|---|
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Size - Body | 0.256" L x 0.114" W x 0.091" H (6.50mm x 2.90mm x 2.30mm) |
| Manufacturer | PIC GmbH |
| Operate Time | 0.35 ms |
| Release Time | 0.1 ms |
| Mounting Type | Surface Mount |
| Operate Range | 5 ~ 10AT |
| Power - Rated | 5W |
| Release Range | 2AT |
| Current - Carry | 500mA (AC/DC) |
| Length - Overall | 0.398" (10.11mm) |
| Termination Style | Axial |
| Current - Switching | 250mA (AC/DC) |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Switching AC | 140 V |
| Voltage - Switching DC | 175 V |
